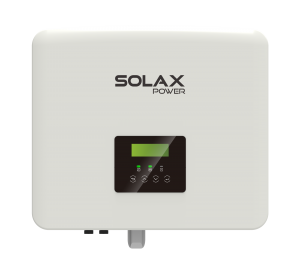

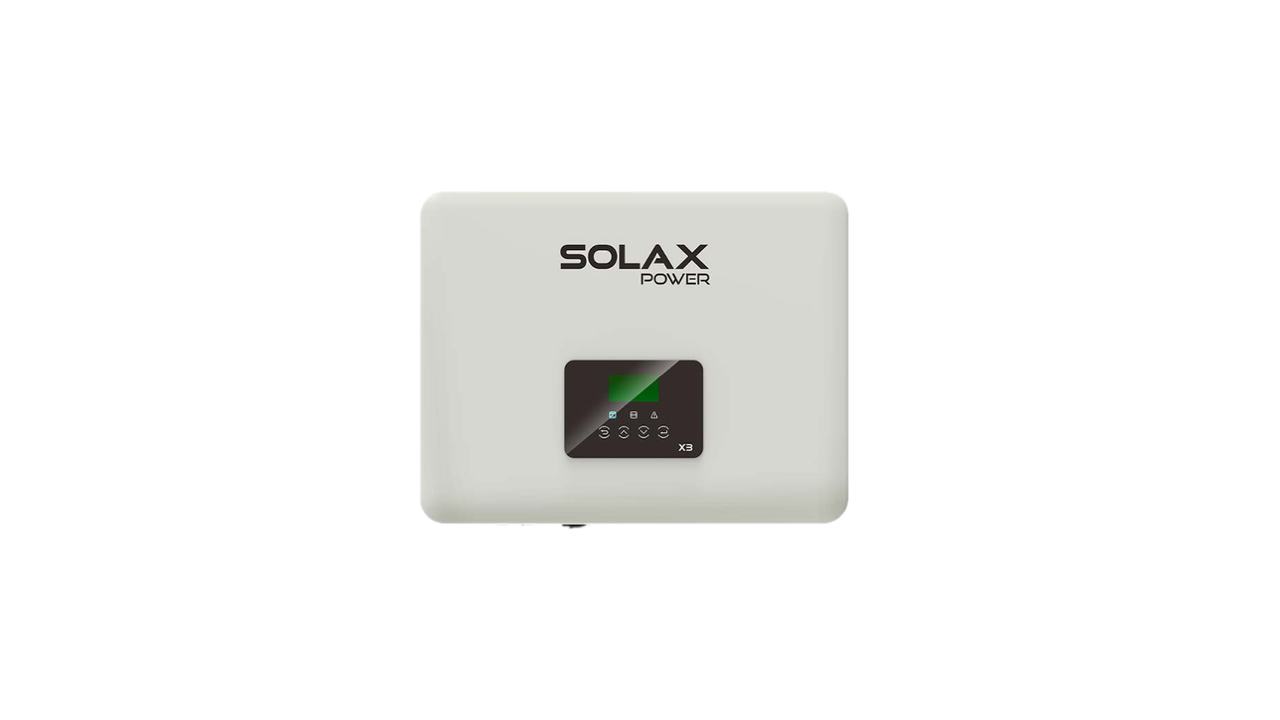

SolaX X3 G4 Hybrid 15.0D (inc. WiFi dongle)

SolaX hybrid X3 G4-V2 3 Phase Inverter HV 15.0kW

#2: X3-HYBRID-G4-15.0-V2
#3: 4576

SolaX X3 Data Sheet

SolaX X3 Manual

SolaX X3 Warranty

SolaX X3 G100

*Collections are not permitted due to health & safety regulations*

For a full list of SolaX products click here.

High-efficiency

• 150% PV oversized and 110% overload output. Maximum 150% overload output
• Higher efficiency on charging and discharging, up to 97.5%
• Built-in shadow tracking function

Economic

• Maximum 16A DC input current, support for high power solar panels
• Low start output voltage
• Less energy loss from battery to inverter

Intelligent

• Switchover time <10ms
• CT compatible, loads respond within 0.3s
• Intelligent loads management(e.g., Heat pump)
• On & Off-grid parallel function, up to 150kW

Wi-Fi is now included with Solax X3-Hybrid-G4 V2 product so no need to purchase additional Wi-Fi equipment.

Weight: 30 kg
Rated Power: 15,000 W
Min PPT Voltage: 180 V
Max PPT Voltage: 950 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 200 V
Max Input Voltage: 950 V
Max DC Power: 18,000 W
Max AC Power (5 Minutes): 15,001 W
Surge AC Power (1 Second): 15,002 W
Max DC Current: 26 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: SUNCLIX
Included Connectors: 2
Euro Efficiency: 97 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: No
Warranty: 5 years
