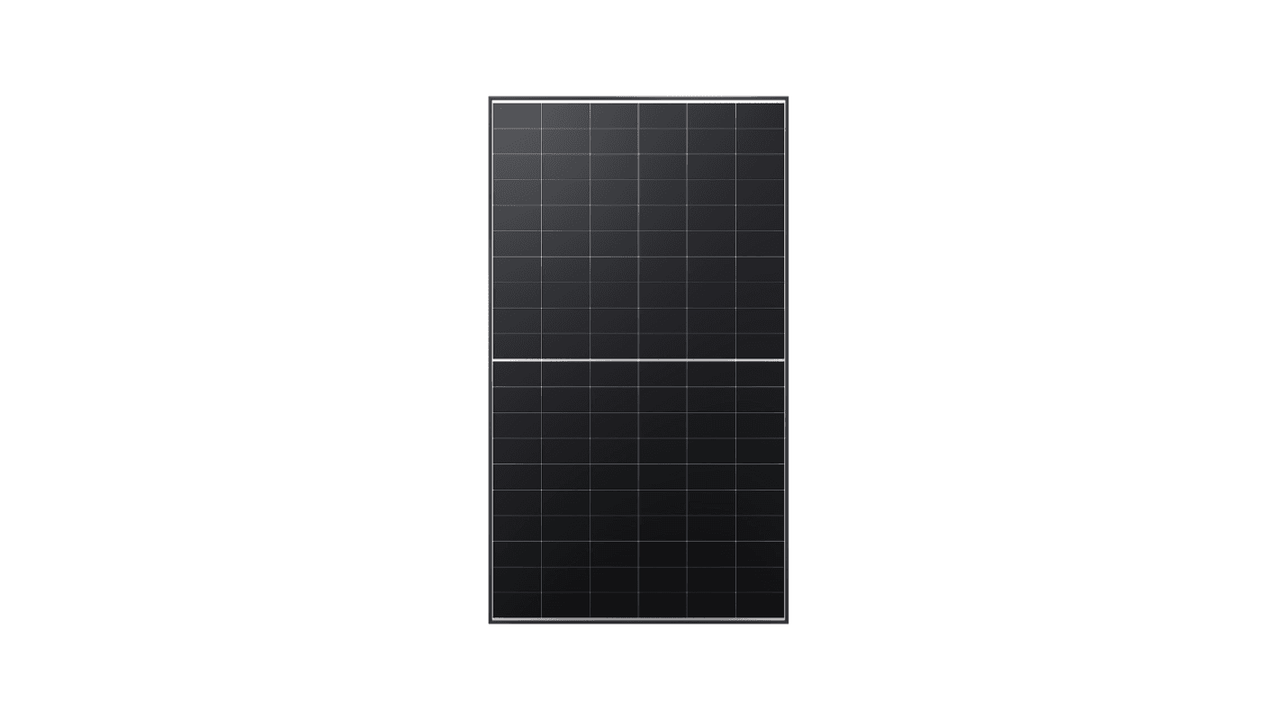

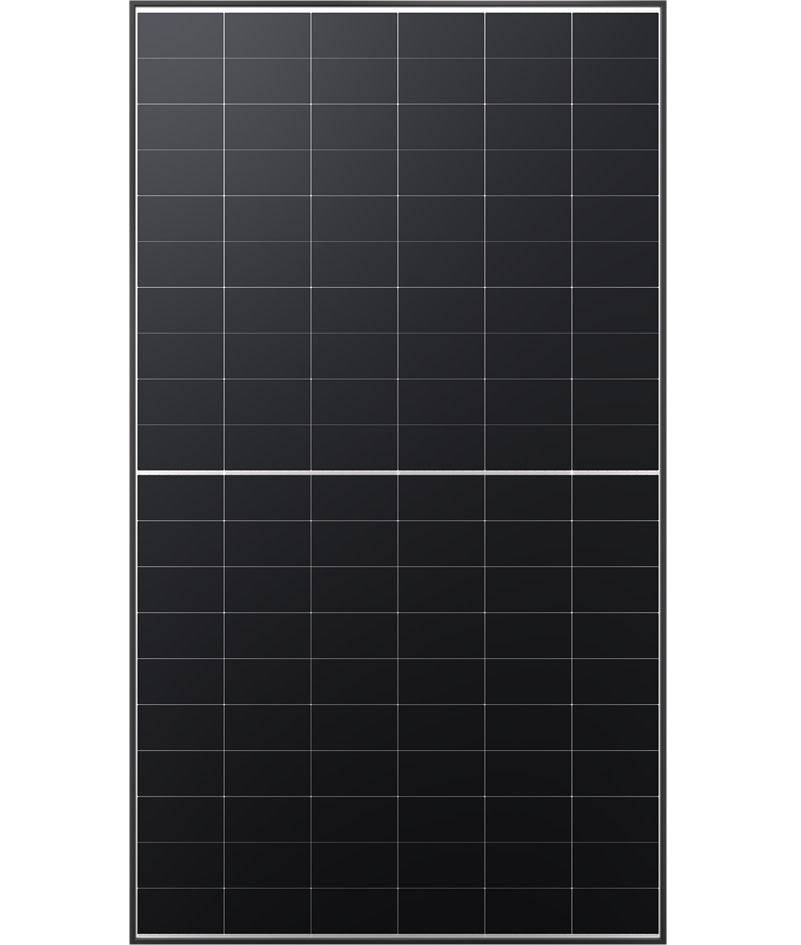

515W Longi Hi-MO X6 Max Explorer HPBC Half Cell Black Frame

515W Longi Hi-MO X6 Max Explorer HPBC Half Cell Black Frame

#2: LR7-60HTH-515M

Longi 515W Data Sheet

Longi 530W Installation Manual

Longi Warranty

Minimum order for this panel: 4 panel

This Longi LR7-60HTH series uses a 60 cell high efficiency hybrid passivated back contact cell creating a high performance module.

Features

• Up to 22.8% efficiency
• Maximum series voltage: DC1500V
• 40%W year 2-25 power degradation
• Power Tolerance: 0-3%
• Product: Warranty: 15 years
• Performance Warranty:  25 years

Specs

• Weight: 24.8 kg
• Rated Power: 515 W
• Dimensions: 1990 x 1134 x 30mm
• VMPP: 37.04 V
• IMPP: 13.91 A
• Isc: 14.89 A
• Voc: 43.9 V
• Temp.Coefficient: -0.28%
• Clamp position on panel: Long side only
• Connector Type: MC4
• Pallet: oversized
