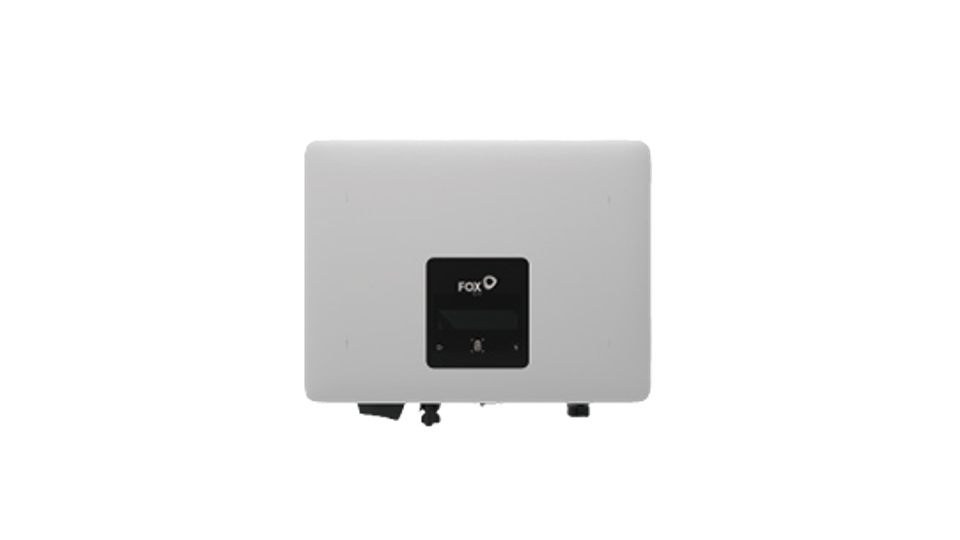

Fox ESS 0.7kW S Series 1PH Single Tracker PV Inverter

Fox ESS 0.7kW S Series 1PH Single Tracker PV Inverter

#2: FE-S700 Inverters - Main Units

Fox S Series 0.7kW Data Sheet

Fox S Series 0.7kW User Manual

Fox S Series 0.7.kW Install Guide

*Collections are not permitted due to health & safety regulations*

This Single-MPPT S Series range includes 0.7 - 3.0kW models. The S Series is IP65 rated and battery ready for easy upgrade when paired with a Fox ESS charge controller.

Features:

• High Performance: Low start-up voltage, wide voltage range, 97.4% maxium effiency.
• Easy Installation: Flexible configuration, plug and play set-up.
• IP65 Rated: Engineered to last with maximum flexibility. Suitable for outdoor installation.
• Remote Monitoring: Monitor your system remotely via smartphone app or web portal.

Please note: To activate warranty from 5 to 10 years you need to register your install with Fox online, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

Weight: 5.4 kg
Rated Power: 700 W
Min PPT Voltage: 60 V
Max PPT Voltage: 500 V
DC Startup Voltage: 60 V
DC Shutdown Voltage: 500 V
Max Input Voltage: 500 V
Max DC Power: 1,050 W
Max AC Power (5 Minutes): 700 W
Surge AC Power (1 Second): 800 W
Max DC Current:14 A
Max DC Inputs: 1
Has DC Fuses: 1
Connector: MC4 Included
Connectors: 1
Euro Efficiency: 96.5 %
Transformer: N/A
MPPT Quantity: 1
Has Integrated DC Switch: Yes
Warranty: 5 years
