MyEnergi Libbi 3.68kW Hybrid + 20kWh Battery All in one Battery Storage System

£7,320.00 + VAT

MyEnergi Libbi 3.68kW Hybrid + 20kWh Battery All in one Battery Storage System

£7,320.00 + VAT
Contact Us
Product description

Libbi 3.68kW Hybrid + 20kWh Battery All in one Battery Storage System

#3: 4715

#2: MYEN-LIBBI-310SH

#2:: MYEN-LIBBI-B05H-4

#2: MYEN-LIBBI-EK201

Pdf free iconLibbi 3.68kW Datasheet

Pdf free icon Libbi 3.68kW Installation Manual

Pdf free iconLibbi 3.68kW Operation Instructions

Pdf free icon Libbi 3.68kW G98 Certificate

The Myenergi libbi is crafted to store surplus electricity precisely when you require it. This system enables the efficient capture of excess solar power while seamlessly integrating with your current myenergi devices. The modular design of libbi ensures flexibility, with each module capable of storing up to 5kWh of electricity. Combining four modules allows for a total storage capacity of up to 20kWh.

libbi isn't just a battery system, it's eco smart. This means it makes intelligent decisions about when it provides and stores electricity based on how much energy you use, how much you generate with your solar and the electricity tariff you use.

libbi is modular by design. Each module can store up to 5kWh of electricity, so combining 4 of them together would provide up to 20kWh of storage.

Control

  • Your surplus self generated electricity, decreasing your dependency on the electricity grid


Optimise

  • The best time to capture grid electricity at its cheapest, based around your time of use tariff


Integrate

  • With your myenergi devices, prioritising stored electricity to power your home, eddi or zappi

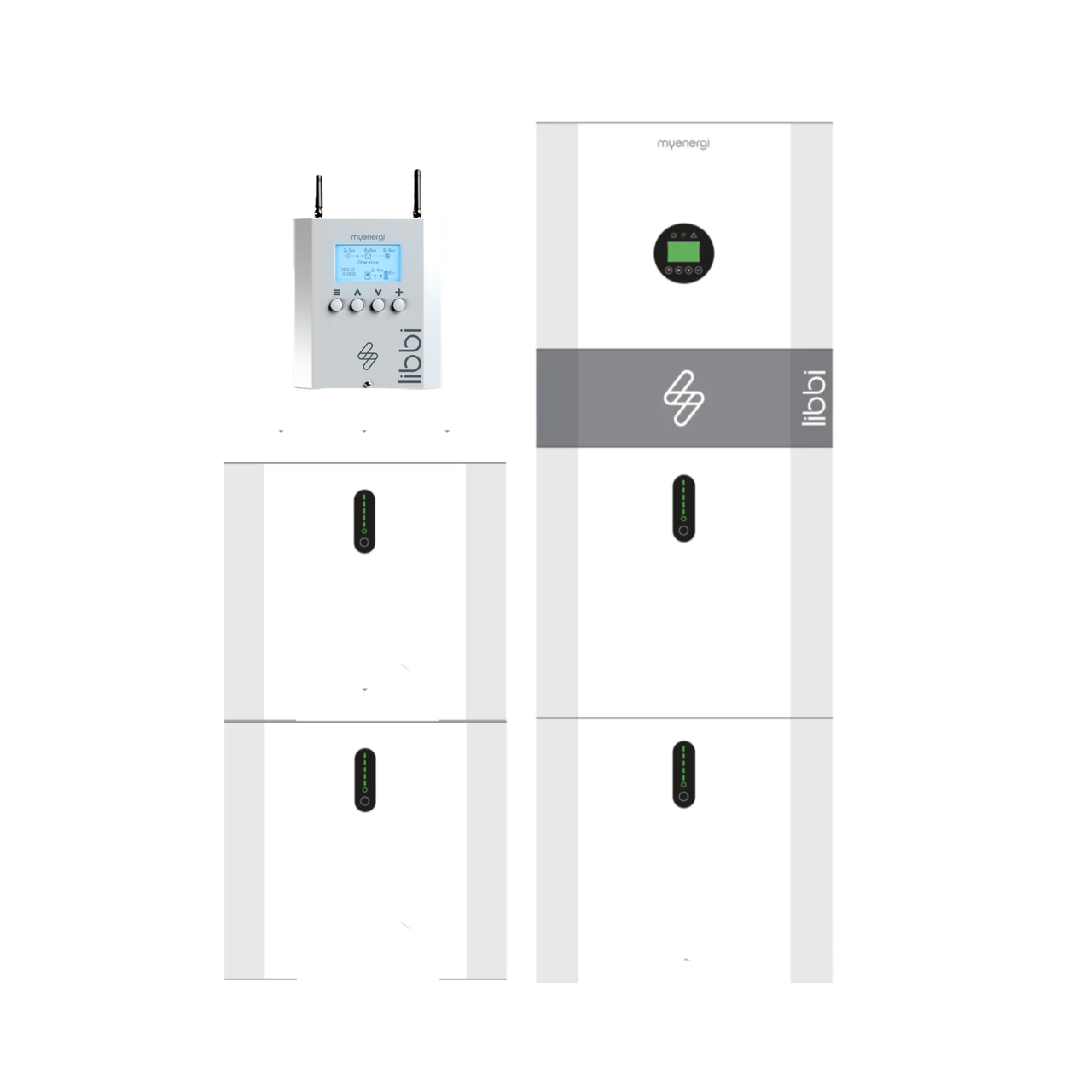

This Kit Includes:

  • 1 x 3.68kW Libbi Inverter
  • 4 x 5kWh Libbi Home Battery
  • 1 x Myenergi Controller
  • 1 x 20kWh Cable Expansion Kit


  • myenergi Ecosystem - Integrate with your myenergi devices, prioritising stored electricity to power your home, eddi or zappi.
    • Ultimate Control - Choose whether you want to charge your libbi from solar, grid or a mixture of both. When charging from grid libbi optimises around your time of use or dynamic tariff.
    • Remote Access - myenergi app allows you to access and control your libbi from anywhere in the world. Live displays allow you to monitor your imported and exported electricity, all in one place.
    • Modular Storage By Design - Each battery module stores 5kWh of electricity. Combining four together provides up to 20kWh of storage.
    • Flexible Install - libbi works as both an AC and DC coupled battery system with solar PV. Connect PV without the need for a separate inverter or retrofit to any existing PV system.
    • Optional Blackout Back Up - Instant energy availability to a dedicated socket or lighting circuit in the event of a power cut*


    AC Output
    Max power - 3680W
    Max current - 16A
    Number of phases - 1

    System
    Max efficiency - 97.6%
    IP rating - IP65
    Built in protection - AC and DC surge protection Type II, arc fault
    Export limitations - Possible using CT or meter
    Weight - 32kg
    Dimensions - 40 x 590 x 240mm
    Communication- 1 x LAN port, RJ45 connector
    Warranty - 5 years

    DC attributes (Inverter)
    Number of MPPT -2
    V range of MPPT- 120 - 550V
    Max power -4800W
    Max current - 18A
    Max voltage - 580V
    Start up voltage - 130V

    DC Attributes (Battery Input)
    Max charge current - 50A
    Max discharge current - 80A
    Max charge power - 3000W
    Max discharge power - 4000W
    Nominal batt voltage - 51.2V
    Battery Type - LiFePO4
