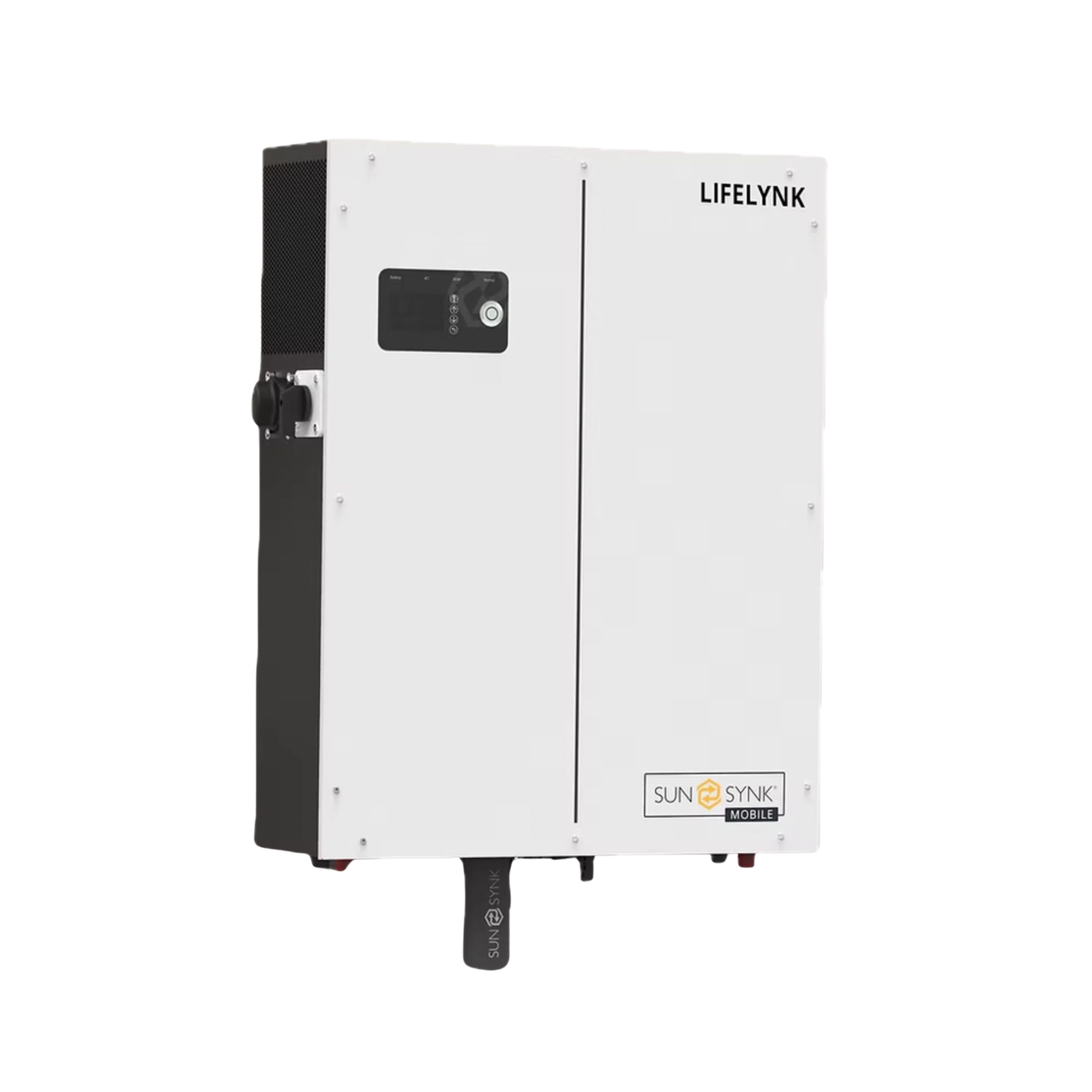

Sunsynk Lifelynk X 3.6kW all in one Hybrid Inverter with 3.84kwh battery
5: SUN-LIFE3.6X-HYB Storage Systems - Hybrid Inverter
#2: LIFE-3.6-HYB02
Sunsynk Lifelynk Data Sheet
Lifelynk is compatible with all current L, G & W series models as well as SUN-BAT-5.32 Sunsynk batteries
*Collections are not permitted due to health & safety regulations*
Sunsynk hybrids have the API to connect to Octopus Agile & Flux to buy electricity at cheap rates and even sell back to the national grid at high rates through SEG payments.
The new Sunsynk Lifelynk X 3.6kW LIFE3.6X-HYB Hybrid Inverter by Sunsynk Mobile is a true all-in-one, plug-and-play, expandable inverter that has been created to simplify and speed up installation. This inverter enables full control, visibility, and access to the system, making site-specific customisation easy.
The Sunsynk Lifelynk X 3.6kW LIFE Hybrid Inverter comes complete with everything you need to install this cutting-edge storage solution. In-built connection points give access to the Load, Grid, CT, and WiFi data logger ports, making it a true "plug and play" system.
This product is perfect for retrofitting into a current solar PV install. It would need to suit the power rating of the current solar array. The built-in battery is also expandable to a higher capacity at a later date if required. The Sunsynk Lifelynk X also has the ability to power an emergency power system in case of a power cut. It will also suit installation alongside an EV charger too.
Product Features:
-
Small and Mighty - An ideal solution for smaller properties, social housing and local government projects
-
Power Built-in - 3.6kW hybrid inverter, 3.84kWh LiFePO4 battery and a 4.5kW MPPT all in one compact unit
-
EPS Function - Includes option for 3.6kw Output for Essential Loads
-
Easy to Install - Everything you need included in one solution with easy access to ports and a wall mountable bracket
- Plug and Play - Get up and running quickly
- Convenient and Hassle-free - The Lifelynk has been designed with easy installation in mind
Technical Specifications:
- Maximum Power Output - 3600w
- Dimensions - 700.6 x 534.6 x 182.2mm
- Weight - 57.4kg
Weight |
57.4 kg |
Dimensions |
54.36 × 18.22 × 70.06 cm |
Brand |
Sunsynk
|
Rated Power |
3600W
|
DC Start-up Voltage |
150V
|
Weight |
57.4kg
|
Warranty |
5 Years
|
Max. Charging/Discharging Current |
60A Charge, 80A Discharge
|
Battery Capacity |
3.84kWh
|
Take complete control of your inverter by using the Sunsynk App.
Start by visiting the Apple App Store, or Google play store and searching "Sunsynk Logger". Alternatively, open your prefered web browser and search www.sunsynk.net.
Real time push notifications. For example Instant notification if you have a power cut or you are running on generator, or batteries
Change all settings remotely. Our data logger allows you to change and edit all settings remotely from anywhere in the world, provided that you have an Internet connection.
Complete control over your Hybrid Inverter. Using our data logger gives you complete control over your hybrid inverter. You will gain access to features that cannot be accessed via the inverter control panel, such as the update / upgrade feature to update the inverter operating system yourself.
Real-time monitoring. The majority of our app works in real-time including any changes that you make will instantly update on your inverter.
Live stats and monitoring. You have access to multiple stats including live monitoring and reporting. Using this app allows you to see peaks in your energy usage, you can then customize your system to work around this to help you save money on your electricity bills.
Reporting. Generate custom reports and graphs to help you monitor and understand how your system is working and where you are saving money.
Real-time monitoring. The majority of our app works in real-time including any changes that you make will instantly update on your inverter.
Sunsynk is integrated with Octopus Agile, Flux & Go. Our data logger platform has been integrated with Octopus Agile. Having access to these rates, you can setup and monitor your charge and discharge figures, this enables you to charge your battery at the cheapest rates. When the price increases your battery discharges and saves you money.
