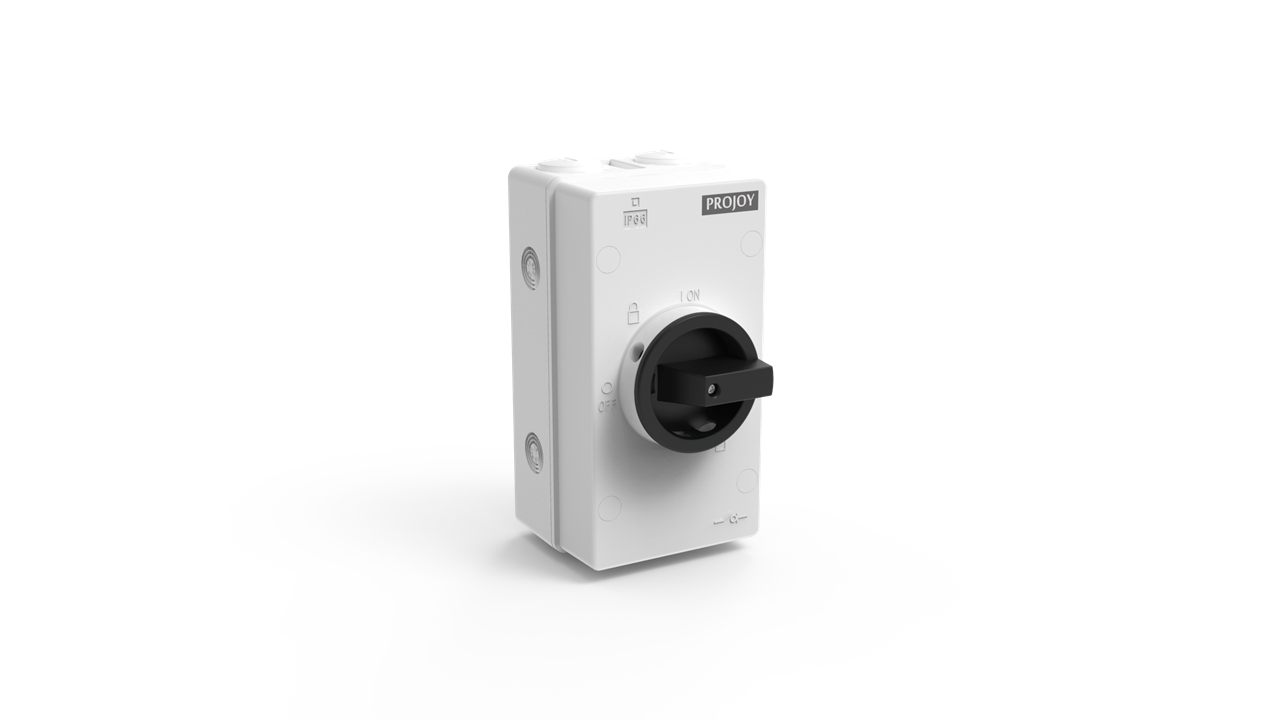

Projoy DC Isolator 32A 4pole 2string

£18.85 + VAT

Projoy DC Isolator 32A 4pole 2string

£18.85 + VAT
Contact Us
Product description

Projoy DC Isolator 32A 4pole 2string

#1: PEDS150-EL32R-4 Switches - AC Isolators

PEDS-EL Enclosure Series DC Isolator

  • Modular design, DC insulation voltage 1500V, compact structure, 2-8 poles optional
  • IP66 box design, switch rotation operator with three lockable positions, to prevent misoperation
  • Suitable for different specifications of waterproof cable connector
  • The zero line bridge with angle design makes the connection easier
  • With sufficient internal space and good heat dissipation effect, the whole machine can work under -40℃-70℃ with full load
  • High - speed "on - off" switching mechanism, using energy storage spring, fast switching, maximum switching time is less than 5ms
  • Contact self-cleaning design, reduce the resistance and energy consumption of DC switch, extend the life of switch
  • Magnetic arc extinguishing and gate arc extinguishing are used to suppress the arc effectively
  • Passed IEC / EN60947-3: 2009+A1+A2, GB / T14048.3, with TUV, CE certification

Weight: 0.25 kg
Poles: 4
Max Cable: 16 mm2
Max Voltage: 1,500 V
Rated Current: 32 A
Rated Voltage: 300 V
Rated Current: 32 A
Rated Voltage: 600 V
Rated Current: 26 A
Rated Voltage: 800 V
Rated Current: 13 A
Rated Voltage: 1000 V
