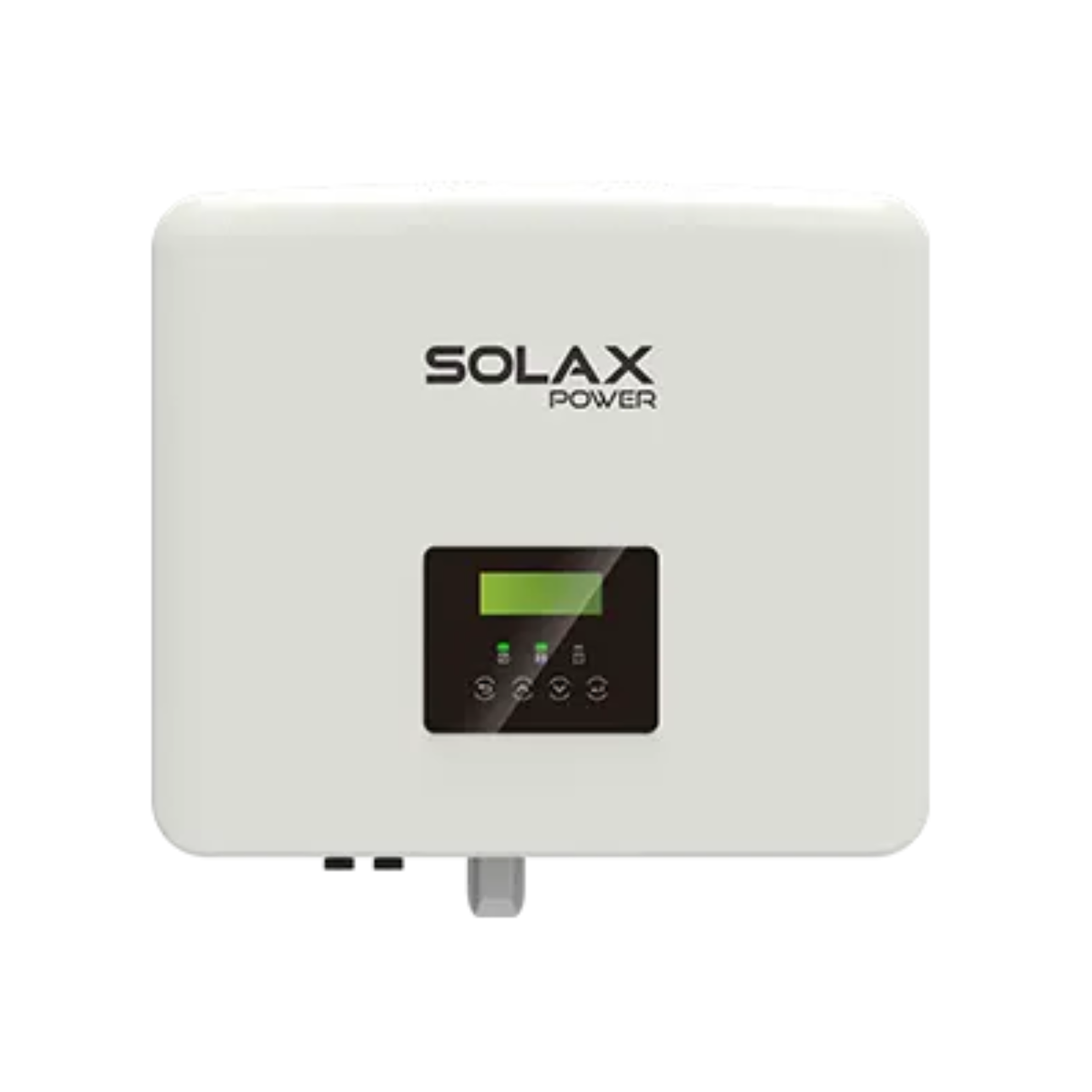

G4 HV Single Phase Hybrid Inverter And Charge Controller
This is the fourth generation of SolaX Hybrid/AC Charge controller inverters to be released into the market, retaining all the key features of the 3rd generation ranges, incorporating some new enhancements.
Additional features of the G4 range include;
- Supports up to 150% Oversizing The new G4 range allows for greater oversizing in comparison to previous generations meaning you can maximise the amount of connected PV ensuring the system is always producing the maximum amount.
- High reliability Performs well in harsh environments -Passed the HALT test -Tested to extreme high and low temperatures -Salt spray tested -Aging test with full working load.
- 30 Min installation Faster and easier installation reduces the time spent on site.
- Fast Charging speeds The G4 range can almost fully charge the tripe power battery in ONE hour. With the shorter charging time you can store more energy inside the same time period.
- Element protection Can work at full load under extremely cold temperatures of down to -30C.
Wi-Fi is now included with Solax X1-Hybrid-G4 V2 products so no need to purchase additional Wi-Fi equipment.
Specs
Weight: 24 kg
Rated Power: 5,000 W
Min PPT Voltage: 125 V
Max PPT Voltage: 550 V
DC Startup Voltage: 125 V
DC Shutdown Voltage: 125 V
Max Input Voltage: 600 V
Max DC Power: 7,500 W
Max AC Power (5 Minutes): 5,001 W
Surge AC Power (1 Second): 5,002 W
Max DC Current: 28 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: SUNCLIX
Included Connectors: 2
Euro Efficiency: 97 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: No
Warranty: 5 years
