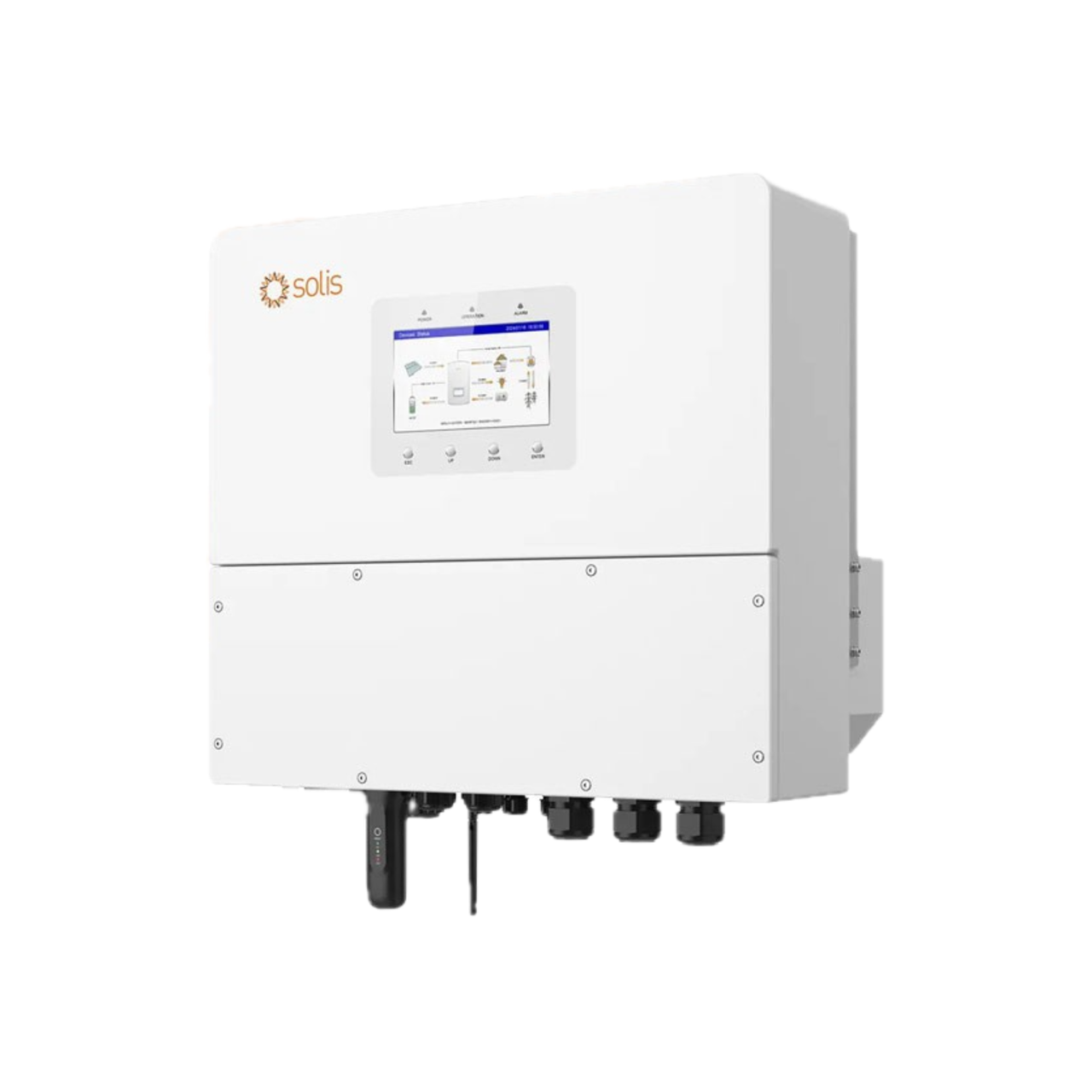

Solis S6 20kW Three Phase Hybrid High Voltage Inverter

Solis S6 20kW Three Phase Hybrid High Voltage Inverter

#2: SOL-S6-EH3P20K-H  Storage Systems - Hybrid Inverter

Solis S6 20kW Inverter Data Sheet

Solis S6 20kW Inverter Manual & Install Guide

Solis S6 20kW Inverter Warranty

Solis S6 Battery Compatibility List

*Collections are not permitted due to health & safety regulations*



Please note: This includes 3 current sensors for direct connection to the  inverter.

The Solis S6 Hybrid inverter offers flexibility with its 3 or 4 MPPTs. Its high input current ensures compatibility with modern high-performance modules. If there is power grid failure, the integrated switching device means selected loads can still be supplied with emergency power.

Product Features

• Integrated 3 or 4 MPPTs for multiple array orientations
• 50A per 10kW maximum charge/discharge rating
• String current up to 20A
• 10 second 200% surge power backup capability
• Supports maximum of 6 pcs in parallel
• Supports unbalanced and half-wave loads on the grid and backup port
• Supports peak shaving control
• Automatic UPS switching
• AC coupling scheme, able to upgrade existing grid connected systems
• Up to 6 customised charge/discharge settings

Specs

• Weight: 31.7 kg
• Rated Power: 20,000 W
• Min PPT Voltage: 200 V
• Max PPT Voltage: 850 V
• DC Startup Voltage: 160 V
• DC Shutdown Voltage: 1,000 V
• Max Input Voltage: 1,000 V
• Max DC Power: 30,000 W
• Max AC Power (5 Minutes): 20,000 W
• Surge AC Power (1 Second): 22,000 W
• Max DC Current: 96 A
• Max DC Inputs: 6
• Has DC Fuses: 0
• Connector: MC4
• Included Connectors: 4
• Euro Efficiency: 97.7%
• Transformer: none
• MPPT Quantity: 3
• Has Integrated DC Switch: No
• Warranty: 5 years
