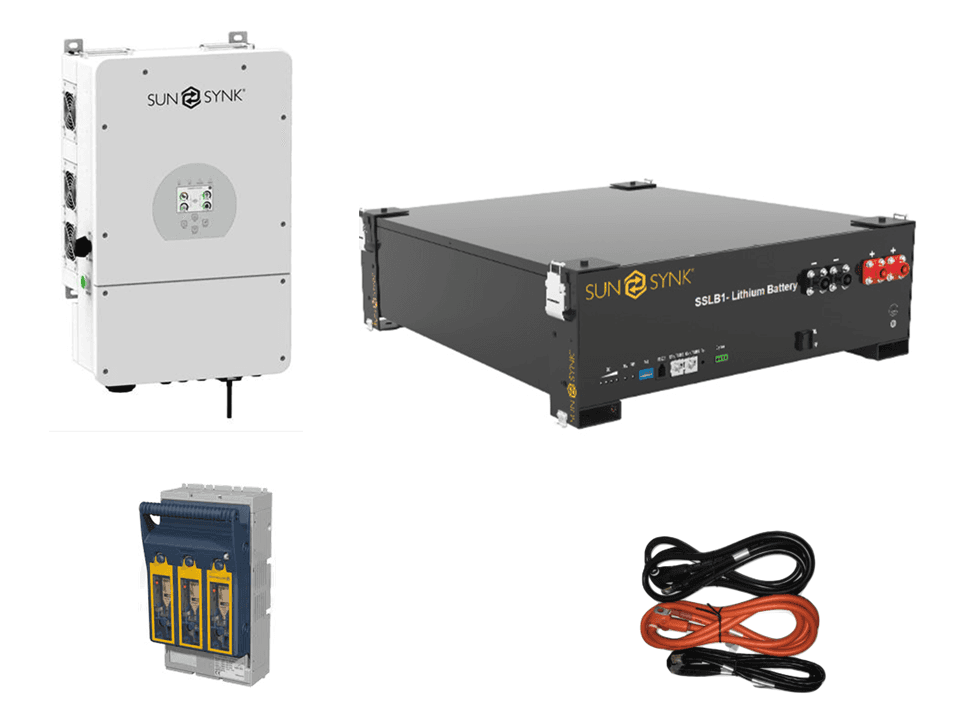

Complete Kit: Sunsynk CATL 5.12kWh + Sunsynk 8kW Hybrid Inverter
Complete kit includes:
1 x SUN-BAT-CATL-5.12
1 x SUN-8.0-ECCO

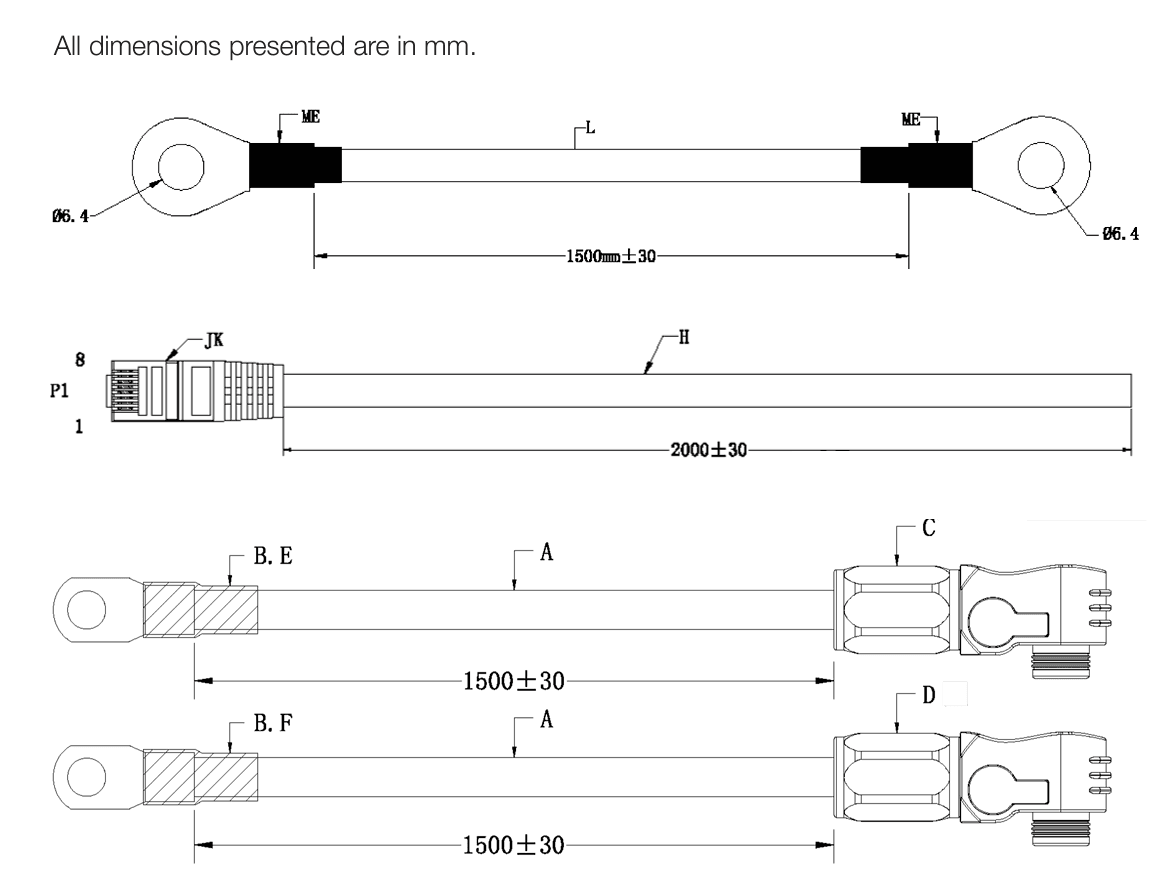

1 x SUN-CABLE-PACKÂ
1 x KETO-1-200
 Sunsynk 8kWh Data Sheet
 Sunsynk 8kWh Installation Manual
 Sunsynk 8kWh Warranty
 Sunsynk 8KWh G99 Certificate
 Sunsynk 5.12kWh Battery Data Sheet
 Sunsynk 5.12kWh Battery Manual
 Sunsynk 5.12kWh Battery Warranty
To increase the size of your system add:
Sunsynk CATL 5.12kWh battery
Sunsynk CATL battery to battery cable for each additional battery
Product Features
Long life span with an expected life of 10-years
5-year product warranty and 10-year performance warranty
Parallel capability of 16 units
Up to 5 batteries per inverter
100% Depth of Discharge
5.12kW maximum discharge power (C1 rated)Â
Batteries provide excellent thermal stability and storage and also has a self-monitoring function to detect abnormalities.Â
IP rating 40
Weight: 47.5 kg
Battery Type: Lithium Ion
Nominal Energy: 5120 Wh
Depth of discharge: 100.00 %
Voltage: 48 V
Continuous Discharge Rate (Normal Use): 2400 W
Maximum Discharge Rate (5 Minutes): 4800 W
Surge Discharge Rate (15 Seconds): 9600 W
Maximum Charge Rate (5 Minutes): 4800 W
Â

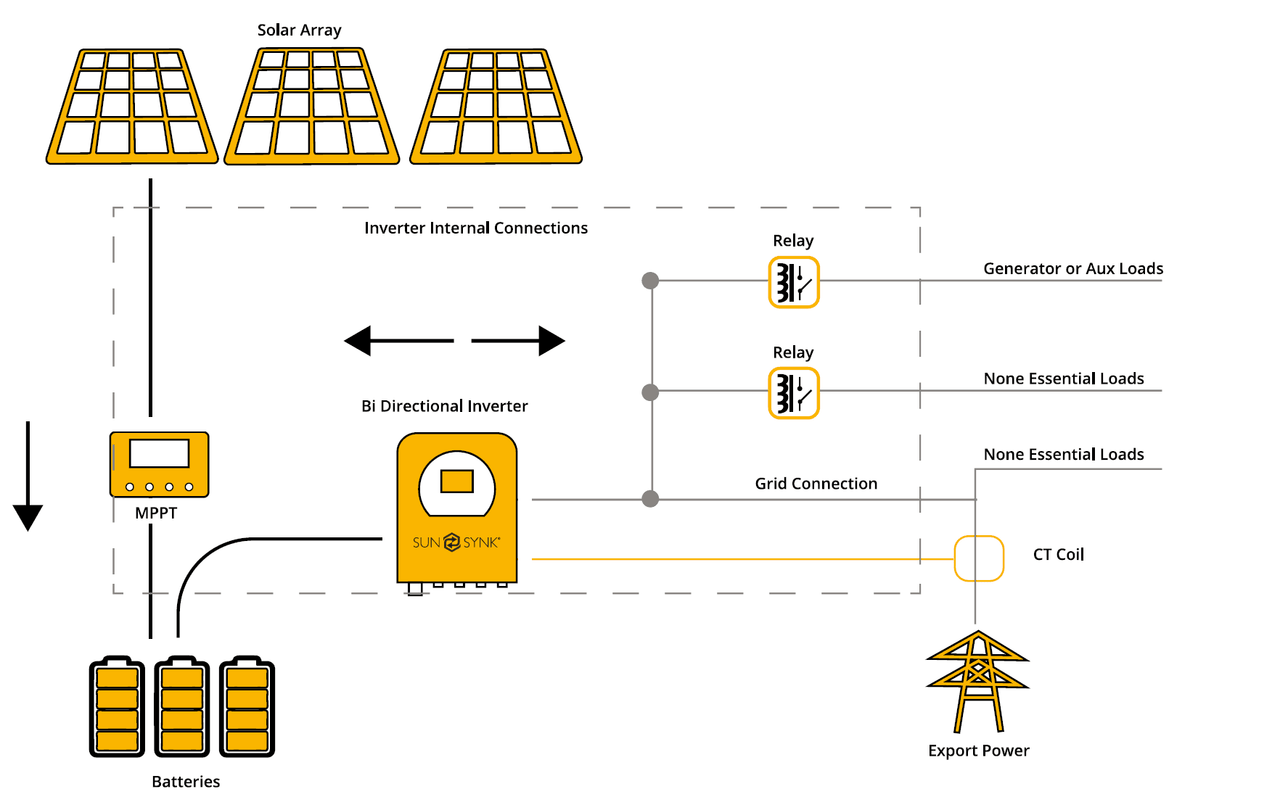

Sunsynk 8kW ECCO hybrid
Product Features
- Dual MPPT design
- Compatible with most Lithium-ion batteries and Lead Acid batteries
- Mobile App for monitoring
- IP65 rated
- Automatic switching from Grid-Tied to Off-Grid mode
- Zero export function

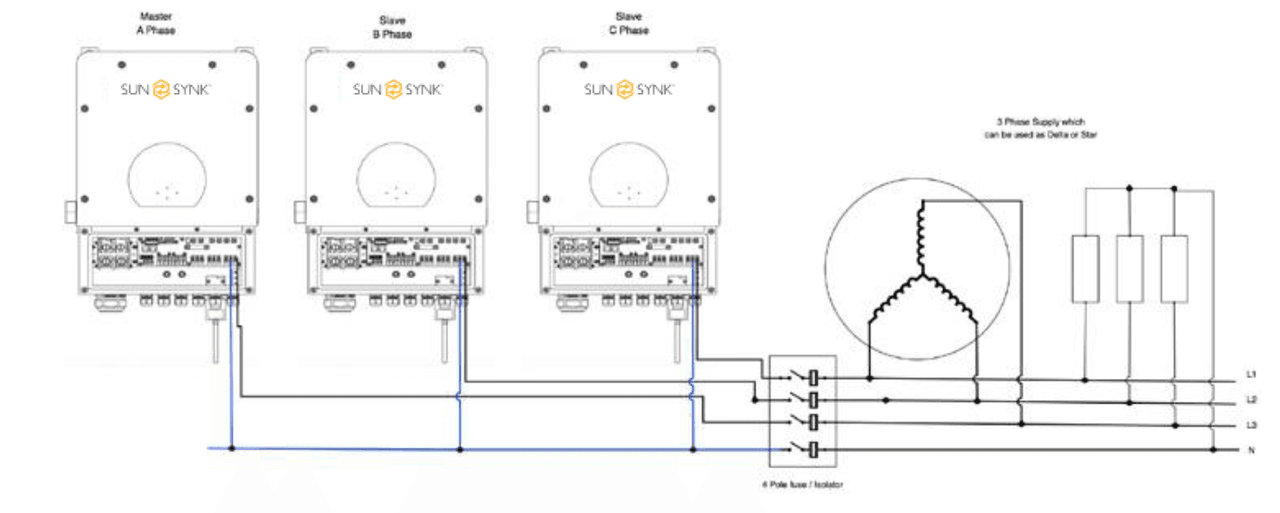

- Up to 16 units with the same firmware can be paralleled
- Essential and Non-Essential Loads outputs
- Comes with the Wi-Fi logger and CT
- Compatible with SolarMan App for Monitoring
Specs
- Sunsynk-8.8-K-SG01LP1 ECCO
- Weight: 25 kg
- Rated Power: 8,000 W
- Min PPT Voltage: 125 V
- Max PPT Voltage: 425 V
- DC Startup Voltage: 150 V
- DC Shutdown Voltage: 150 V
- Max Input Voltage: 500 V
- Max DC Power: 10,400 W
- Max AC Power (5 Minutes): 8,001 W
- Surge AC Power (1 Second): 8,002 W
- Max DC Current: 44 A
- Max DC Inputs: 2
- Has DC Fuses: 0
- Connector: MC4
- Included Connectors: 0
- Euro Efficiency:96.5 %
- Transformer: None
- MPPT Quantity: 2
- Has Integrated DC Switch: Yes
Take complete control of your inverter by using the Sunsynk App.
Start by visiting the Apple App Store, or Google play store and searching "Sunsynk Logger". Alternatively, open your prefered web browser and search www.sunsynk.net.Â
Real time push notifications. For example Instant notification if you have a power cut or you are running on generator, or batteries
Change all settings remotely. Our data logger allows you to change and edit all settings remotely from anywhere in the world, provided that you have an Internet connection.
Complete control over your Hybrid Inverter. Using our data logger gives you complete control over your hybrid inverter. You will gain access to features that cannot be accessed via the inverter control panel, such as the update / upgrade feature to update the inverter operating system yourself.
Real-time monitoring. The majority of our app works in real-time including any changes that you make will instantly update on your inverter.
Live stats and monitoring. You have access to multiple stats including live monitoring and reporting. Using this app allows you to see peaks in your energy usage, you can then customize your system to work around this to help you save money on your electricity bills.
Reporting. Generate custom reports and graphs to help you monitor and understand how your system is working and where you are saving money.
Real-time monitoring. The majority of our app works in real-time including any changes that you make will instantly update on your inverter.
Sunsynk is integrated with Octopus Agile, Flux & Go. Our data logger platform has been integrated with Octopus Agile. Having access to these rates, you can setup and monitor your charge and discharge figures, this enables you to charge your battery at the cheapest rates. When the price increases your battery discharges and saves you money.
