SolarEdge (97)

SolarEdge WiFi and ZigBee Antenna single (SetAPP )Part No: SE-WIFI-ANTENNA Display - Web Interfaces*Collections are not permitted due to health & safety regulations*Solar Edge Antenna for Wi-Fi and ZigBee Communications. Simple Wireless Connectivity Used to connect a Solar Edge device to the monitoring platform via Wi-Fi Used to connect a Solar Edge device to Smart Energy devices via ZigBee communications Antenna external to inverter for wider range Wi-Fi and Zigbee stations are built into Solar Edge device Indoor and outdoor usage 5 years warranty All inverters with the new communication board come with integrated WiFi for commissioning with SetApp. If connection to the monitoring portal via WiFi is required then this part – antenna - is required (the signal of the integrated WiFi is not strong enough). The inverter does not need to be connected to the internet for commissioning purposes, but the installer must have an internet connection from their mobile device to download the app. SE-ANT-ZBWIFI-KIT.Please note this WIFI Antenna will NOT work with older type Solar Edge inverters with display.For SetAPP inverters without screen ONLY.

Current Transformer 200A (incl. fly lead) #1: CT-200A Display - Current Sensor Clamps 200A Current Transformer clamp Split Core CT Series Frequency: 50-60Hz Accuracy: ±1% between 20% - 120% Insulation voltage: 600V AC Maximum primary voltage: 5000V AC Dielectric strength: 2.5KV/1mA/1min Operating temperature: -15 °C to +60 °C Operating humidity: <85% Case material: PC / UL94-V0 Bobbin: PBT Core: Permalloy Internal structure: Epoxy Split core Current Transformer ( incl. fly lead ) Part No as per datasheet: SCT24 200\5 Keywords: Landis, Display, Current Sensor Clamp

Current Transformer 500A (incl. fly lead) #1: CT-500A Display - Current Sensor Clamps SCT36-500/5A Split Core Current Transformer 500A Current Transformer clamp Frequency: 50-60Hz Accuracy: ±1% between 20% - 120% Insulation voltage: 600V AC Maximum primary voltage: 5000V AC Dielectric strength: 2.5KV/1mA/1min Operating temperature: -15 °C to +60 °C Operating humidity: <85% Case material: PC / UL94-V0 Bobbin: PBT Core: Permalloy Internal structure: Epoxy Split core Current Transformer ( incl. fly lead ) Part No as per datasheet: SCT36-500/5A

SolarEdge P801 Optimiser 800W MC4 2x72 Cell 2.2m 2: P801-MC4#3: 3479 SE P801 Optimiser Data Sheet SE P801 Optimiser Installation Manual SE P801 Optimiser Warranty SE P801 Optimiser Certification Minimum order: 4 Units P801-4RMLMRY For 72 cells, 2 in series (landscape), 125V, input 0.9m, output 2.2m The most cost effective solution for commercial and large field installations Specifically designed to work with SolarEdge inverters Up to 25% more energy Superior efficiency (99.5%) Balance of System cost reduction; 50% less cables, fuses and combiner boxes, over 2x longer strings lengths possible. Fast installation with a single bolt Advanced maintenance with module-level monitoring Module-level voltage shutdown for installer and firefighter safety Use with two PV modules connected in series or in parallel This optimiser is ideal for commercial installations allowing the connection of two panels to one power optimiser. This optimiser is compatible with large SolarEdge inverters (SE-16000 and up) only. Specs Weight: 1.05 kg Min PPT Voltage: 13 V Max PPT Voltage: 105 V DC Startup Voltage: 13 V DC Shutdown Voltage: 13 V Max Input Voltage: 125 V Max DC Power: 800 W Max AC Power (5 Minutes): 0 W Surge AC Power (1 Second): 0 W Max DC Current: 11.75 A Max DC Inputs: 2 Has DC Fuses: 0 Connector: MC4 Included Connectors: 2 Euro Efficiency: 98.6 % Transformer: N/A MPPT Quantity : 1 Has Integrated DC Switch: No Warranty: 25 years

SolarEdge S440 Power Optimiser #2: S440-MC4 SE S440 Optimiser Datasheet SE S440 Optimiser Ground Mounted Manual SE S440 Optimiser Certification SE S440 Optimiser Warranty Minimum order: 4 Units Part No: S440-MC4 Inverters - Optimisers Specifically designed to work with SolarEdge residential inverters Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading Faster installations with simplified cable management and easy assembly using a single bolt Detects abnormal PV connector behavior, preventing potential safety issues Module-level voltage shutdown for installer and firefighter safety Flexible system design for maximum space utilization Compatible with bifacial PV modules Superior efficiency (99.5%)

P850 Optimiser 850W MC4 2x High Power/Bi-facial 2.2m with 1.3m input length #2: P850-2.2-LI-1.3-MC4 Inverters - Inverters - Optimisers #3: 3481#4182 #4: S850-1GM4MRY SE P850 Optimiser Data Sheet SE P850 Optimiser Installation Manual SE P850 Optimiser Warranty SE P850 Optimiser Certification Minimum order: 4 Units P850-5RM4MBY The SolarEdge power optimizer is a DC/DC converter which is connected by installers to each PV module (or pair of modules) or embedded by module manufacturers, replacing the traditional solar junction box. The SolarEdge power optimizers increase energy output from PV systems by constantly tracking the maximum power point (MPPT) of each module individually. Furthermore, the power optimizers monitor the performance of each module and communicate performance data to the SolarEdge monitoring platform for enhanced, cost-effective module-level maintenance. Each power optimizer is equipped with the unique SafeDCâ„¢ feature which is designed to automatically shut down modules' DC voltage whenever the inverter or grid power is shut down. This optimiser is ideal for commercial installations allowing the connection of two High Power or Bi-facial panels in Series to one power optimiser. It supports up to 850W and has a bent bracket (similar to the new P505 optimiser) to accommodate clearance of larger enclosures. This optimiser is compatible with larger SolarEdge 3 phase inverters (SE-16000 and up) only. Weight: 1.06 kgMin PPT Voltage: 13 VMax PPT Voltage: 125 VDC Startup Voltage: 13 VDC Shutdown Voltage: 125 VMax Input Voltage: 125 VMax DC Power: 850 WMax AC Power (5 Minutes): 0 WSurge AC Power (1 Second): 0 WMax DC Current: 14.1 AMax DC Inputs: 2Has DC Fuses: 0Connector: MC4Included Connectors: 2Euro Efficiency: 98.6 %Transformer: N/AMPPT Quantity : 1Has Integrated DC Switch: NoWarranty: 25 years Input length: 1.3mOutput Length: 2.2m

S1000 Power Optimiser Long Input (1.3m) #3: S1000-LI-MC4 Inverters - Optimisers SE S1000 Optimiser Datasheet Minimum order: 4 Units S1000 Power Optimizer Long Input (1.3m) Specifically designed to work with SolarEdge Comercial inverters Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading Faster installations with simplified cable management and easy assembly using a single bolt Detects abnormal PV connector behavior, preventing potential safety issues Module-level voltage shutdown for installer and firefighter safety Flexible system design for maximum space utilization Compatible with bifacial PV modules Superior efficiency (99.5%)   Weight: 1.09 kgMin PPT Voltage: 12 VMax PPT Voltage: 125 VDC Startup Voltage: 12 VDC Shutdown Voltage: 125 VMax Input Voltage: 125 VMax DC Power: 1,000 WMax DC Current: 15 AMax DC Inputs: 2Has DC Fuses: 0Connector: MC4Included Connectors: 12MPPT Quantity : 1Has Integrated DC Switch: No

1PH/3PH 230/400V SolarEdge Energy Meter K2 with Modbus Connection #1: SE-WND-3Y400-MB-K2 Display - Energy Meter#2: SolarEdge Energy Meter with Modbus Connection#3: SE-WND-3Y400-MB-K2 Energy Meter K2 Inverter Data Sheet Energy Meter K2 Installation Manual Energy Meter K2 Warranty Energy Meter K2 G100 Certification*Collections are not permitted due to health & safety regulations* Modbus Meter for SolarEdge Installations - High accuracy meter readings for production/consumption monitoring- Import/Export meter readings for export limitation functionality- Small and easy to install - fits in standard electrical panel- Supports residential, commercial and utility-size installationsThis is a new -K2 part with updated firmware to support CT disconnection required to meet UK G100 Feed In Limitation requirements. Please note actual product may look slightly different to image shown.The Modbus meter requires CTs to function. Please choose the appropriate current capacity from the Modbus range

SolarEdge Power Management package <100A grid supply#2: SE-PM-WND-1PH-100A Power Management - Export Limitation 1ph#3: 2111#3086#4: SE-WND-3Y400-MB-K2This part is made up of the following items:1 x 1PH/3PH 230/400V SolarEdge Energy Meter K2 with Modbus Connection SKU: #1: SE-PM-WND-1PH-100A Power Management - Export Limitation 1ph#2: SolarEdge Energy Meter with Modbus Connection#3: SE-WND-3Y400-MB-K2 1 x 100A Split-Core Current Transformer for SolarEdge Energy Meters with Modbus Connection SKU: #1: SE-ACT-0750-100 Display - Current Sensor Clamps#3: SECT-SPL-100A-A10 x Double pair genuine RS485 cable 1M - 4 cores SKU: #1: RS485-DOUBLE-1M This kit is a full monitoring package for Solaredge domestic systems that allows full recording and display of energy generation and usage. Ensures that the complete system is performing at its maximum potential and enables optimisation of energy consumption.Subject to the approval of your local DNO this package may be used to limit the power export of the system to a value agreed with the DNO. e.g. a 100kWp PV system with 85kW of inverters could be limited to 75kW of AC export power if that is required by the DNO. During periods of self consumption, e.g. Monday - Friday, sufficient power is likely to be used by the property and so no limitation is applied but during high generation and low self consumption periods the system will automatically trim the maximum export power to a DNO defined limit. With most commercial buidings this 'lost' energy will be a very small percentage of the total annual generation and the benefit of having additional generation capacity most of the time will far outweigh the lost generation during other times.Note: This package includes an energy meter and 100A CT for a single inverter system. For a system with multiple inverters depending on inverter type, an additonal RS-485 expansion kit might be required. This allows multiple inverters to be connected in a communication bus and also to the energy meter.A 10m length of RS-485 cable is included for connection between the inverter and energy meter, and for connecting the inverters in the bus. Please check if this quantity is sufficient.Supplied with 1 X 100A current monitoring clamps suitable for installation on properties with up to 100A per phase power supply.Current clamps should be sized according to incoming grid supply in the property, please check if these are sufficient before buying. Please note other CTs are available.

Solaredge Power management package for up to 250A grid supply with Modbus Connection Part No: SE-PM-WND-3PH-250A Power Management - Export Limitation 3ph This part is made up of the following items: 1 x 1PH/3PH 230/400V SolarEdge Energy Meter K2 with Modbus Connection 3 x 250A Split-Core Current Transformer for SolarEdge Energy Meters with Modbus Connection 1 x SolarEdge RS485 Plug-in 20 x Double pair genuine RS485 cable 1M - 4 cores This kit is a full monitoring package for Solaredge commercial systems that allows full recording and display of energy generation and usage. Ensures that the complete system is performing at its maximum potential and enables optimisation of energy consumption. Subject to the approval of your local DNO this package may be used to limit the power export of the system to a value agreed with the DNO. e.g. a 100kWp PV system with 85kW of inverters could be limited to 75kW of AC export power if that is required by the DNO. During periods of self consumption, e.g. Monday - Friday, sufficient power is likely to be used by the property and so no limitation is applied but during high generation and low self consumption periods the system will automatically trim the maximum export power to a DNO defined limit. With most commercial buidings this 'lost' energy will be a very small percentage of the total annual generation and the benefit of having additional generation capacity most of the time will far outweigh the lost generation during other times. Note: This kit includes 1x RS485 Expansion Kit, which means its only suitable for systems with 2x inverters. If more than 2x inverters on site additional RS485 Kit per inverter will be required, if only one inverter on site this part will not be required. A 20m length of RS-485 cable is included for connection between the first inverter and energy meter, and for connecting the inverters in the bus. Please check if this quantity is sufficient. Supplied with 3 X 250A current monitoring clamps suitable for installation on properties with up to 250A per phase power supply. Current clamps should be sized according to incoming grid supply in the property, please check if these are sufficient before buying. Please note smaller CTs are available

SolarEdge Home Hot Water Controller, 3kW #2: SMRT-HOT-WTR-30-S2 SolarEdge Home Hot Water Datasheet SolarEdge Home Hot Water Manual SolarEdge Home Hot Warranty *Collections are not permitted due to health & safety regulations* Solar Edge Smart Energy Hot Water maximizes self-consumption by storing excess solar energy as hot water Integrates seamlessly with the complete SolarEdge Home ecosystem, offering a single source for warranty, support and training, to streamline logistics & operations. Automatically adjusts power supplied to the heater, using any amount of available PV power (up to 5.0kW). Wireless communication to the inverter using SolarEdge Home Network, reducing wiring, labor, and installation faults. Built-in water tank power consumption meter. Simple wall mount installation. Suitable for powering purely resistive loads only. Optional temperature sensor for optimized heating.

SolarEdge Home Hot Water Controller, 5kW #2: SMRT-HOT-WTR-50-S2 SolarEdge Home Hot Water Datasheet SolarEdge Home Hot Water Manual SolarEdge Home Hot Warranty *Collections are not permitted due to health & safety regulations* Solar Edge Smart Energy Hot Water maximizes self-consumption by storing excess solar energy as hot water Integrates seamlessly with the complete SolarEdge Home ecosystem, offering a single source for warranty, support and training, to streamline logistics & operations. Automatically adjusts power supplied to the heater, using any amount of available PV power (up to 5.0kW). Wireless communication to the inverter using SolarEdge Home Network, reducing wiring, labor, and installation faults. Built-in water tank power consumption meter. Simple wall mount installation. Suitable for powering purely resistive loads only. Optional temperature sensor for optimized heating.

SolarEdge Home Backup Interface - Home Hub Inverter (Single-Phase RWB) #1: SE-SBI-1PH Storage Systems - Accessory SolarEdge Backup Interface Datasheet *Collections are not permitted due to health & safety regulations* Flexible Backup Interface Automatically provides backup power to home loads in the event of grid interruption. Flexibility in which loads to back up - the entire home or selected loads. Scalable solution to support higher power & higher capacity. Seamless integration with the SolarEdge Home Hub Inverter to manage and monitor both PV generation and energy storage. Accessory for the single-phase Home Hub 'RWB' range of SolarEdge Inverters.

SolarEdge 2200W Home Wave Inverter - Single Phase Network Ready #1: SE-2200H-NET #4: SE2200H-RW000BEN4 SolarEdge 2200W Data Sheet SolarEdge 2200W Manual SolarEdge 2200W Warranty SolarEdge 2200W G99 Certificate *Collections are not permitted due to health & safety regulations*Rating: 2,200WPhases: 1SolarEdge Home Wave Inverter- Network ReadyOptimized Installation With HD-Wave Technology Features: Specifically designed to work with SolarEdge Power Optimizers Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp Industry leading efficiency with 200% DC oversizing Seamless wireless connectivity with system devices such as the SolarEdge Home Battery, via optional SolarEdge Home Network platform Extremely compact, lightweight and easy to install Built-in module-level monitoring Suitable for outdoor and indoor installation Fixed voltage inverter for longer strings Advanced safety feature - integrated arc fault protection Supplier Part No: SE2200H-RW000BEN4Weight: 7.8 kgRated Power: 2,200 WMin PPT Voltage: 0 VMax PPT Voltage: 0 VDC Startup Voltage: 0 VDC Shutdown Voltage: 0 VMax Input Voltage: 480 VMax DC Power: 4,400 WMax AC Power (5 Minutes): 2,200 WSurge AC Power (1 Second): 2,201 WMax DC Current: 6.5 AMax DC Inputs: 1Has DC Fuses: 0Connector: MC4Included Connectors: 2Euro Efficiency: 98.3 %Transformer: NoneMPPT Quantity : 0Has Integrated DC Switch: YesWarranty: 12 years

StorEdge HD Wave 5000W AC Coupled inverter NO DISPLAY #2: SE-5000H-APP-AC #4: SE5000H-RWSACBNN4 SolarEdge 5000W Data Sheet SolarEdge 5000W Manual SolarEdge 5000W Warranty SolarEdge 5000W G99 Certificate *Collections are not permitted due to health & safety regulations* AC coupled storage inverter with HD-Wave Technology and SetAPP This inverter can be used directly with SolarEdge Energy Bank or with LG Chem RESU High Voltage battery when combined with StorEdge Interface STI-S4. SolarEdge energy meter and a suitable CT are required for the correct operation of the system. - - AC coupling means it’s perfectly suited for sites with 1. Three-phase SolarEdge PV inverters and 2. Non-SolarEdge PV inverters or 3. No PV at all. - Monitor battery status, PV inverter production, and self-consumption data for full visibility - IP65 – Outdoor and indoor installation

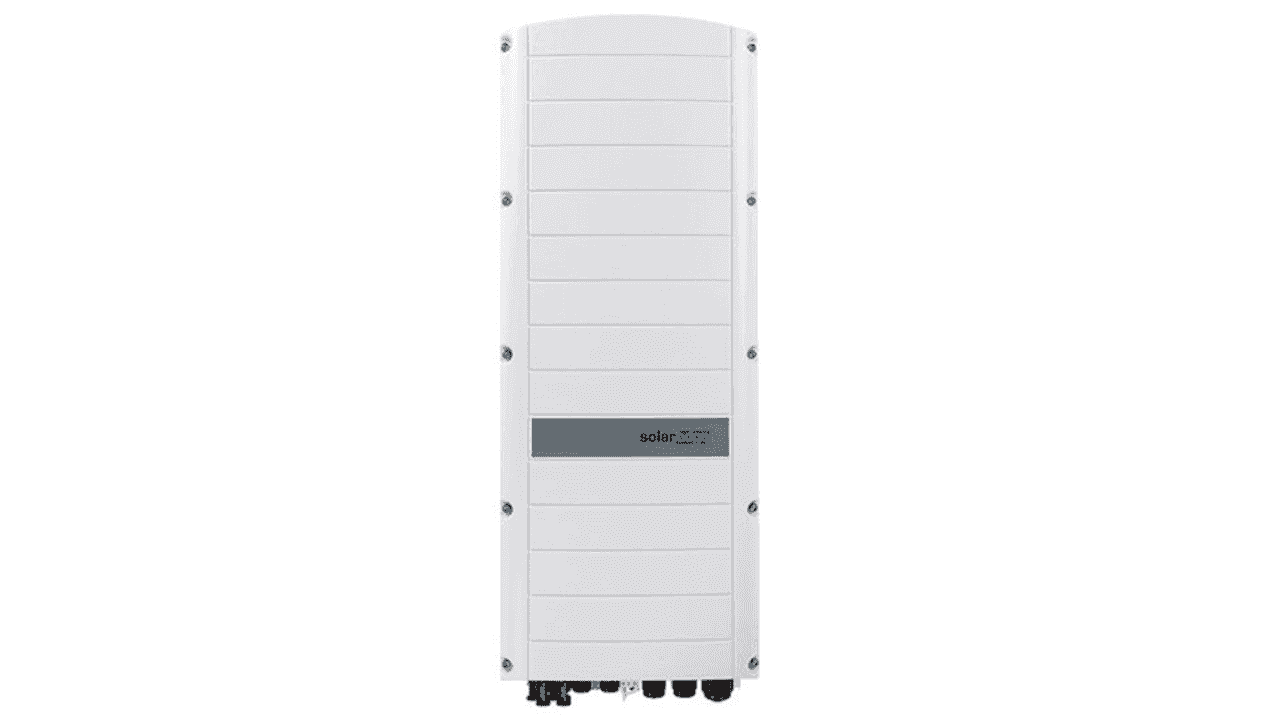

3,680W StorEdge Inverter - Single Phase #1: SE-3680H-NET-RWS Storage Systems - Hybrid Inverter StorEdge 3,680W Data Sheet StorEdge 3,680W Manual SolarEdge3,680W G98 Certificate SolarEdge Warranty *Collections are not permitted due to health & safety regulations* Single phase hybrid inverter with a rated AC output of 3.68kW. This inverter is compatible with high voltage LG Chem RESU batteries. The inverter controls, manages and optimizes the power flow from the PV, battery and grid sources. Weight: 10 kgRated Power: 3,680 WMin PPT Voltage: 380 VMax PPT Voltage: 480 VDC Startup Voltage: 0 VDC Shutdown Voltage: 0 VMax Input Voltage: 480 VMax DC Power: 5,700 WMax AC Power (5 Minutes): 3,681 WSurge AC Power (1 Second): 3,682 WMax DC Current: 10.5 AMax DC Inputs: 1Has DC Fuses: 0Connector: MC4Included Connectors: 1Euro Efficiency: 98.8 %Transformer: NoneMPPT Quantity : 2Has Integrated DC Switch: YesWarranty: 12 years
