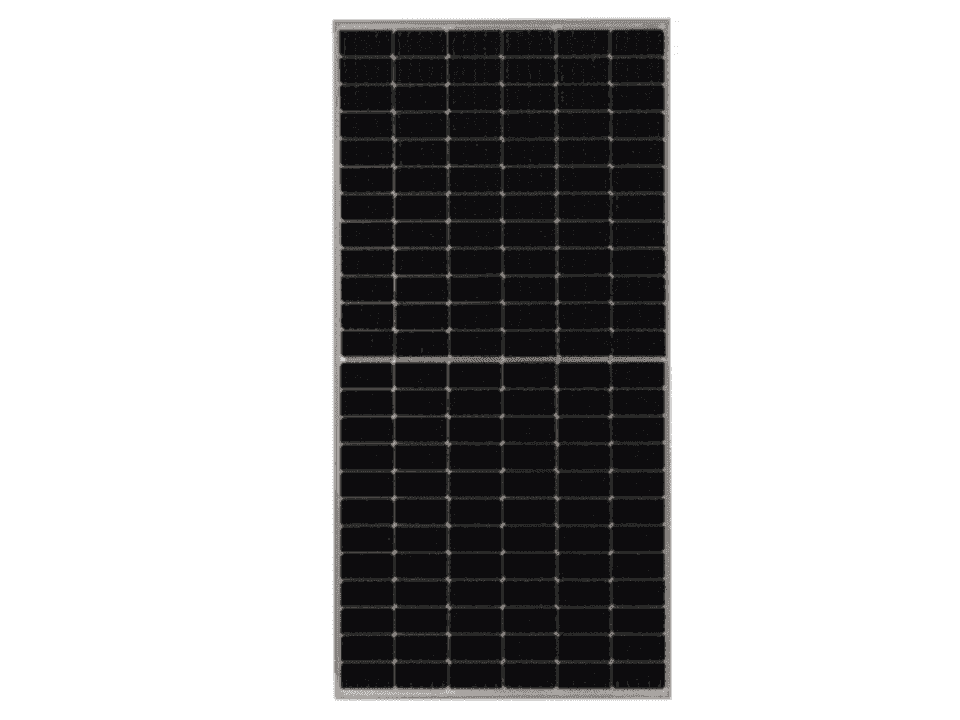

570W JA Solar Mono Traceable PERC Half-Cell MBB LR MC4 Silver Frame

570W JA Solar Mono Traceable PERC Half-Cell MBB LR MC4 Silver Frame

#2: JAM72S-30-570-LR-TS-MC4 Panels - Monocrystallines

JA Solar 570W Data Sheet

JA Solar 570W Installation Manual

JA Solar 570W Warranty

JA Solar CE Declaration of Conformity

Please check minimum order quantity prior to ordering as this varies depending on the specific panel.

Minimum order for this panel: 4 panels.

For orders with no minimum please visit our Single Panels page.

*Collections are not permitted due to health & safety regulations*

• Rating: 570W
• Efficiency: 21.5%
• Width: 1,134mm
• Height: 2,333mm

Features

• Less levelized cost of energy (LCOE)
• Increased output when partial shading due to multi-busbar configuration
• Enhanced tolerance for mechanical loading
• Lower temperature coefficient - high power output in high temperatures
• Warranty 12 years and 25 linear power output warranty

Specs

• Weight: 28 kg
• Rated Power: 570W
• MCS Reference: BABT 8515-332-565W
• Length: 2,333 mm
• Width: 1,134 mm
• Depth: 30 mm
• VMPP: 41.87 V
• IMPP: 13.62 A
• Isc: 14.37 A
• Voc: 50.68 V
• Temp. Coefficient (Mpp): -0.35 %
• Clamp position on panel: Long side only
• Connector Type: MC4
• Efficiency: 21.5%
• Pallet: Oversized
