Fox H1 5.0kW G2 Hybrid with EP5 Battery

£1,852.00 + VAT
Thumbnail for EP5 with fox h1 6.0kw hybrid Thumbnail for Fox ESS Thumbnail for fox hybrid data Thumbnail for fox hydatasheet Thumbnail for Fox H1 5.0kW G2 Hybrid with EP5 Battery Thumbnail for Fox H1 5.0kW G2 Hybrid with EP5 Battery
EP5 with fox h1 6.0kw hybrid
Fox ESS
fox hybrid data
fox hydatasheet
Fox H1 5.0kW G2 Hybrid with EP5 Battery
Fox H1 5.0kW G2 Hybrid with EP5 Battery

Fox H1 5.0kW G2 Hybrid with EP5 Battery

£1,852.00 + VAT
Contact Us
Product description
Fox H1 5.0kW G2 Hybrid with EP5 Battery

#2: FE-H1-5.0-G2-EP5 Special Offers - PV and Storage Package



Pdf free icon Fox 5.0kW Inverter Data Sheet

Pdf free icon Fox 5.0kW User Manual

Pdf free icon Fox Warranty

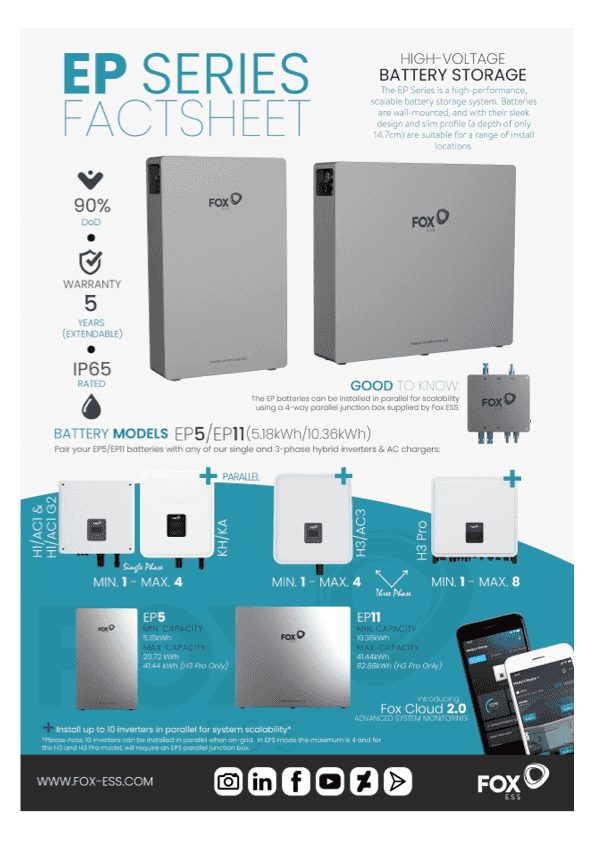

Pdf free icon Fox EP5 Battery Data Sheet

Pdf free icon Fox EP5 Battery User Manual

Collections are not permitted due to health & safety regulations

This package is made up of the following items:

1 x Fox ESS EP5 5.18kWh Battery with 10 year warranty (FE-HV-EP5-10Y)
1 x Fox H1 5.0kW Hybrid Inverter G2 (FE-H1-5.0-G2)

Features:

Easy Install
High Voltage
IP65 Rated
Remote Monitoring
Dual MPPT - ensure optimal solar production
High round-trip efficiency of 97%
With this single phase Hybrid/AC Inverter you can easily expand your system with up to seven batteries in series, with a maximum storage capacity of 33.24kWh.

CT Clamp and WiFi stick are included.
Please note:
A second CT is required if another generator set (ie. PV/wind/other)
A meter is required between inverter and incoming power connection point IF distance is more than 30m apart.

Specs:
  • Weight: 22 kg
  • Rated Power: 5,000 W
  • Min PPT Voltage: 80 V
  • Max PPT Voltage: 550 V
  • DC Startup Voltage: 75 V
  • DC Shutdown Voltage: 601 V
  • Max Input Voltage: 600 V
  • Max DC Power (5 minutes): 7,500 W
  • Max AC Power (5 Minutes): 5,000 W
  • Surge AC Power (1 Second: 5,500 W
  • Max DC Current: 32 A
  • Max DC Inputs: 2
  • Has DC Fuses: 0
  • Connector: MC4
  • Included Connectors: 4
  • Euro Efficiency: 97 %
  • Transformer: None
  • MPPT Quantity: 2
  • Has Integrated DC Switch: Yes
  • Warranty: 5 years


Battery Specs:

  • Rated Power: 5,180 W
  • Weight: 50 kg

Remember to register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page.Please check the warranty document for more information.
