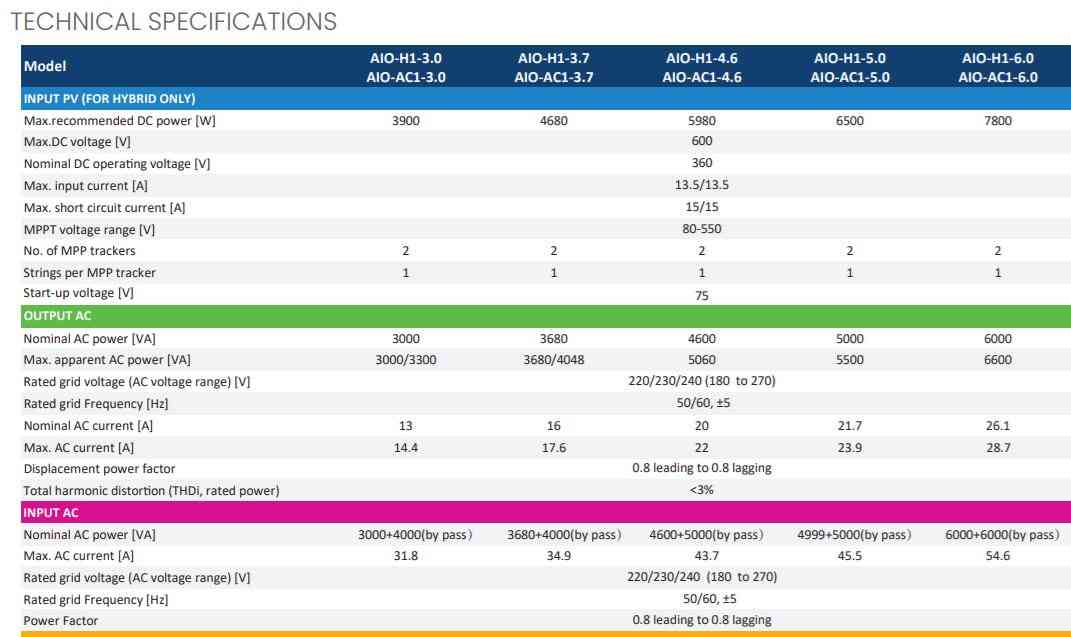

Technical specifications for FOX ESS hybrid storage

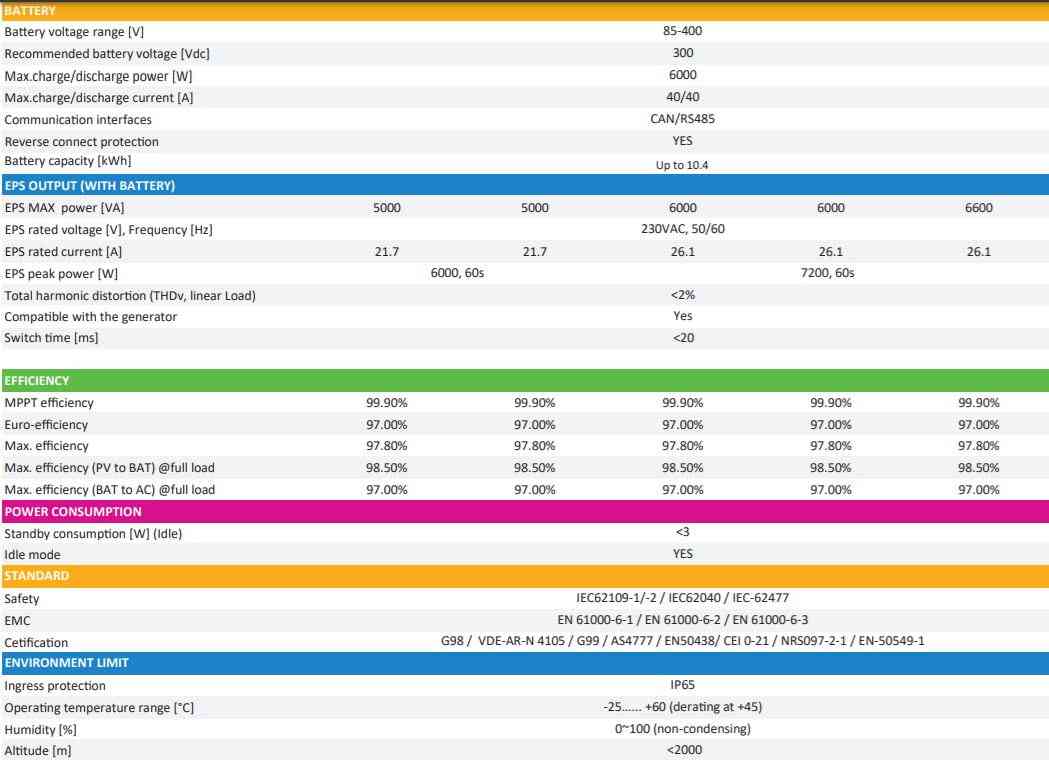

Detailed specs for FOX ESS battery and efficiency

FOX ESS hybrid all-in-one system features

FOX ESS High Voltage All In One Storage Solution 1PH 5kW Hybrid with 5.2 kWh Battery

£1,688.00 + VAT

Product description

FOX ESS High Voltage All In One Storage Solution 1PH 5kW Hybrid with 5.2kWh Battery 90% D.O.D with 6000W Max.charge/discharge power
#1: FE-AIO-H1-5.0-5.2 Storage Systems

*Collections are not permitted due to health & safety regulations*

This part is made up of the following items:

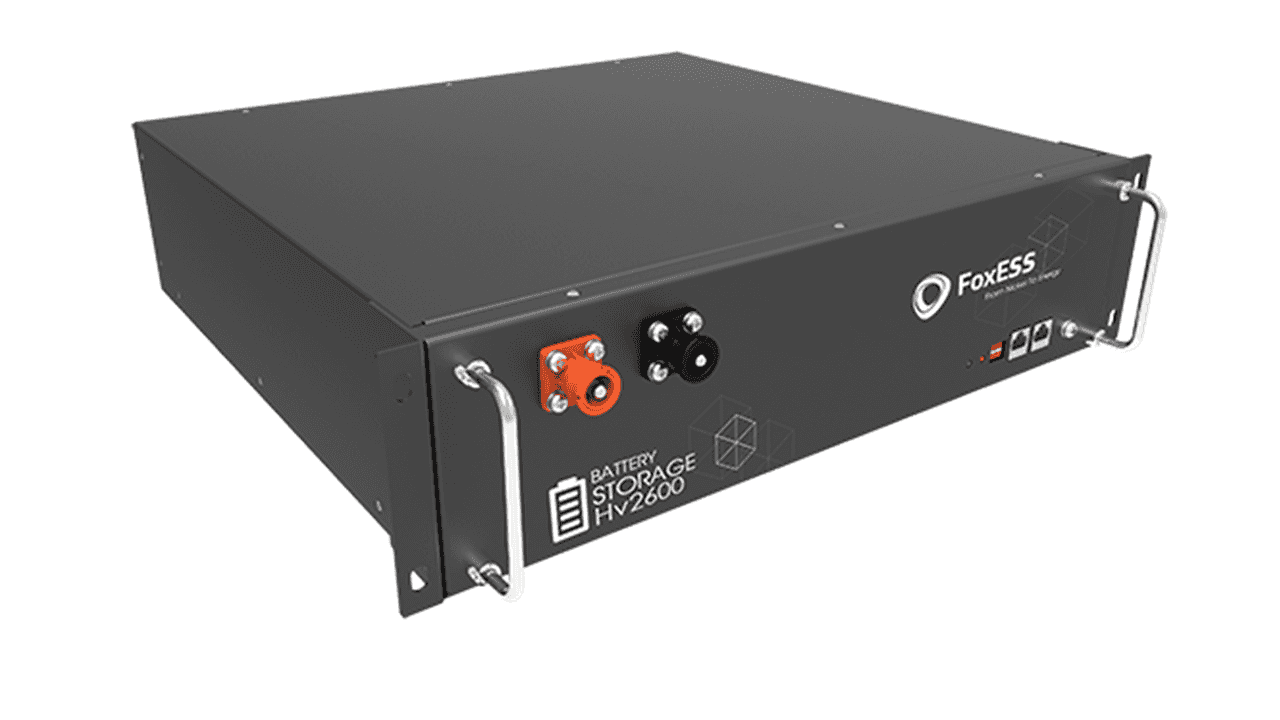

2x HV2600 2.6kWh HV Battery (incl. brackets)

1x All-in-one Hybrid Inverter 1PH, 5kW

1x Cabinet

Up to 2 additional HV2600 AOI batteries can be added

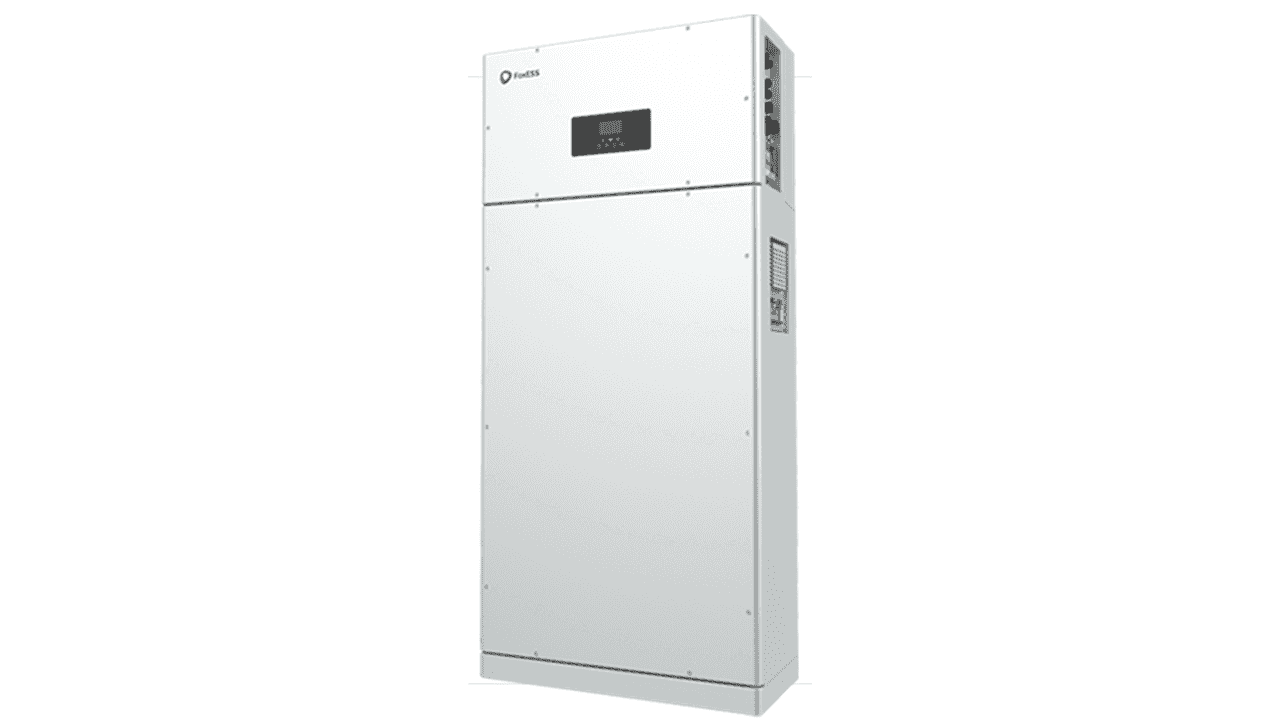

The Fox All-in-one is a stylish single phase floor mounted unit. The Fox AIO uses high voltage batteries for maximum round-trip efficiency, ensuring you get the most our of your storage. The IP65 rated enclosure allows the unit to be installed outdoors for maximum installation flexibility.

The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also available via your smartphone or web portal

Uses high voltage batteries FE-HV2600
Max.charge/discharge power 6000W
IP65 rated - suitable for outdoor installations
Remote monitoring via web portal or smartphone
Easy to expand battery capacity
Dual MPPT - ensure optimal solar production
High round-trip efficiency of 97% BMS unit required 2 x HV2600 batteries minimum

CT Clamps and meter are included in the box

FE-HV2600-V2 ISN'T COMPATIBLE with current BMS and AIO Inverters part numbers: FE-HV-BMS, FE-AIO-H1-3.7-E, FE-AIO-H1-5.0-E, FE-AIO-H3-6.0-E, FE-AIO-H3-8.0-E, FE-AIO-H3-10.0-E
