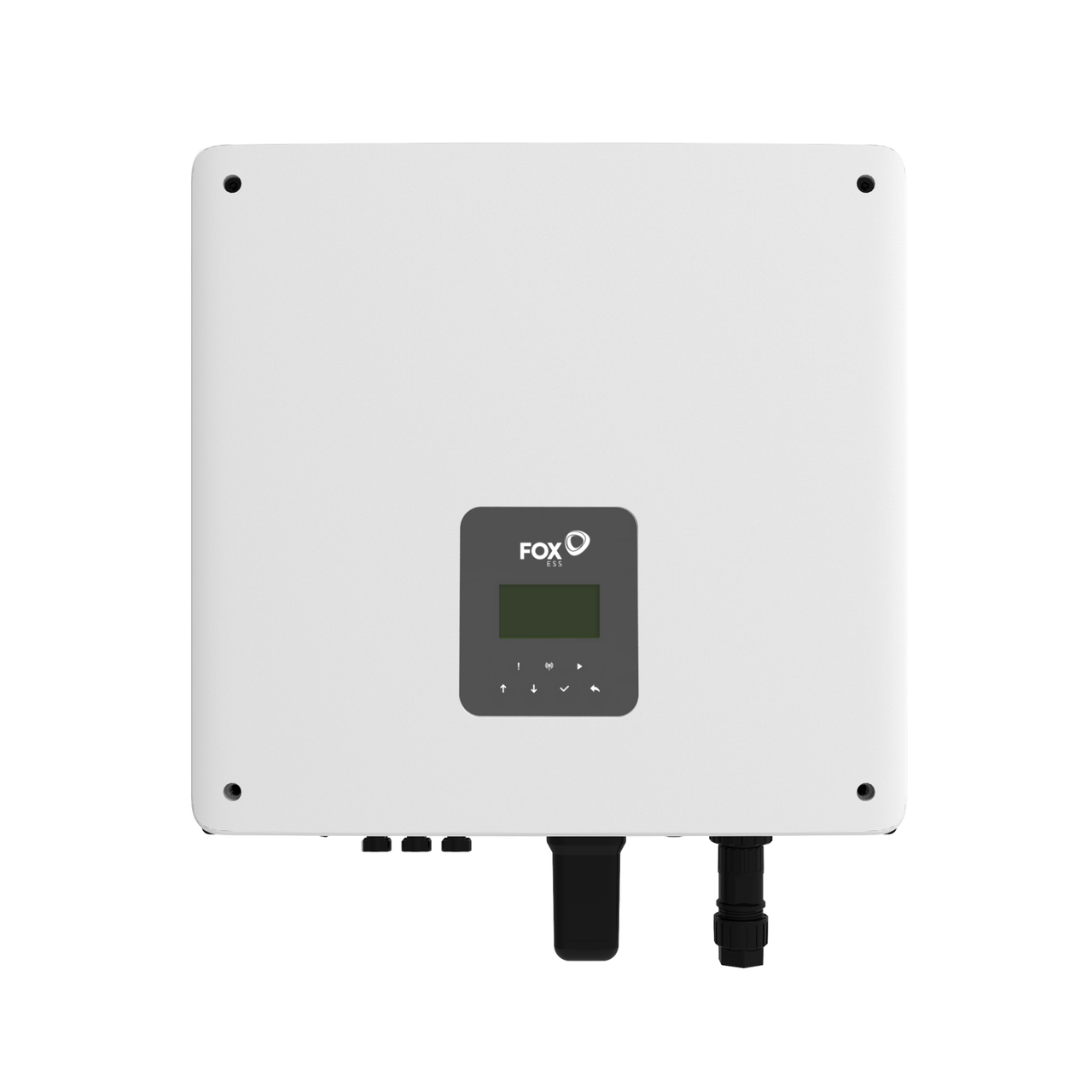

Fox H1 5.0kW Hybrid Inverter G2

Fox H1 5.0kW Hybrid Inverter G2

#2: FE-H1-5.0-G2 Storage Systems - Hybrid Inverter

Fox H1 5.0kW Datasheet

Fox H1 5.0kW Manual

Fox H1 5.0kW Installer Guide

Fox H1 5.0kW G100 Certification

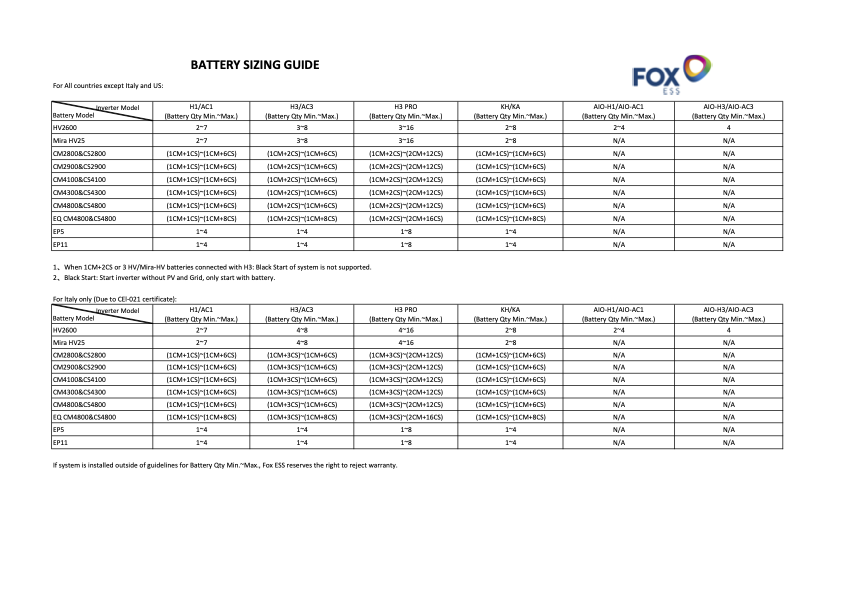

Fox Battery Sizing Guide

*Collections are not permitted due to health & safety regulations*

Features:

• Easy Install

• High Voltage

• IP65 Rated

• Remote Monitoring

• Dual MPPT - ensure optimal solar production
• High round-trip efficiency of 97%

With this single phase Hybrid/AC Inverter you can easily expand your system with up to seven batteries in series, with a maximum storage capacity of 33.24kWh.

Compatible with:

• ECS2900 (1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
• ECS4100 (1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
• ECS4300 (1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
• ECS4800 (1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
• HV2600 (1 BMS + 2 HV2600 Minimum, up to 7 Maximum)

Included:

• CT Clamps
• WiFi stick


Still Required:

• a second CT if there's another generator set (i.e PV, wind or other).

• a meter between inverter and incoming power connection point IF distance is more than 30m apart.

Specs:

Weight: 22 kg
Rated Power: 5,000 W
Min PPT Voltage: 80 V
Max PPT Voltage: 550 V
DC Startup Voltage: 75 V
DC Shutdown Voltage: 601 V
Max Input Voltage: 600 V
Max DC Power (5 minutes): 7,500 W
Max AC Power (5 Minutes): 5,000 W
Surge AC Power (1 Second: 5,500 W
Max DC Current: 32 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 4
Euro Efficiency: 97 %
Transformer: None
MPPT Quantity: 2
Has Integrated DC Switch: Yes
Warranty: 5 years
Remember to register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page.
Please check the warranty document for more information.

Please Note: When installing batteries side-by-side and not stacked one on top of the other, we recommend using HV2600 1M DC Extension Cable
