Product description

Nationwide installations are available across most areas of the UK.

£750 deposit refundable to proceed with the installation process available here

Installation service includes DNO application, MCS & 2yr workmanship warranty.

Steps to Proceed following payment of the deposit:

  1. Provide details of the system you require.
  2. MPAN Number
  3. Photo's of the space for the battery system with a description of the location
  4. Photo's of the consumer unit with description of location of consumer unit in relation to the location for the battery system.
  5. Photo's of a current solar inverter set up if relevant.



#5: INSTALLED-FOX-EP5/11-IP65 Storage Systems - Hybrid Inverter

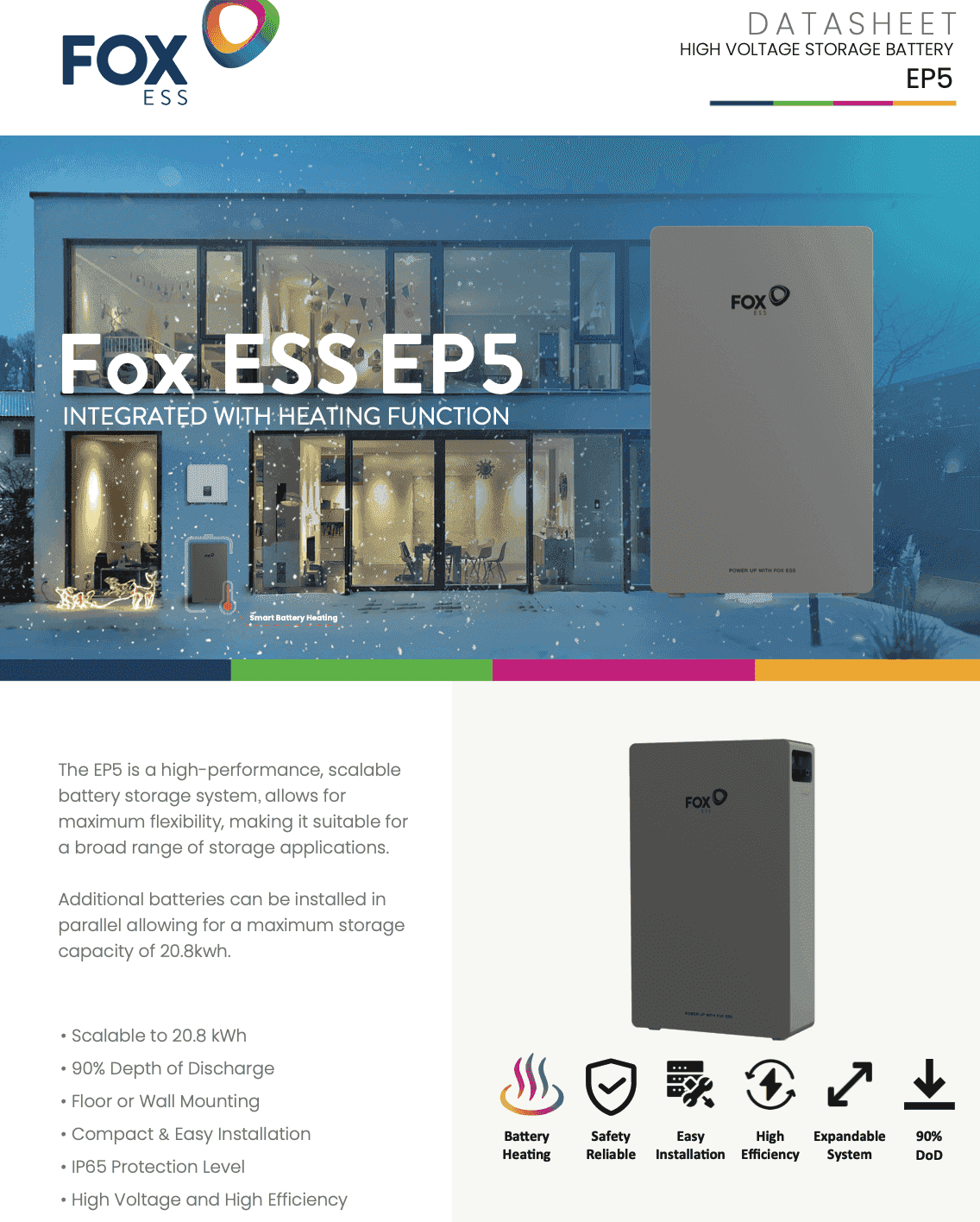

Pdf free icon FOX ESS EP5 Data Sheet

Pdf free icon FOX ESS EP11 Data Sheet



Please view our battery storage information page for sizing and selecting the right battery storage system for you.


Collections are not permitted due to health & safety regulations

Fox ESS collection page for further information and documents

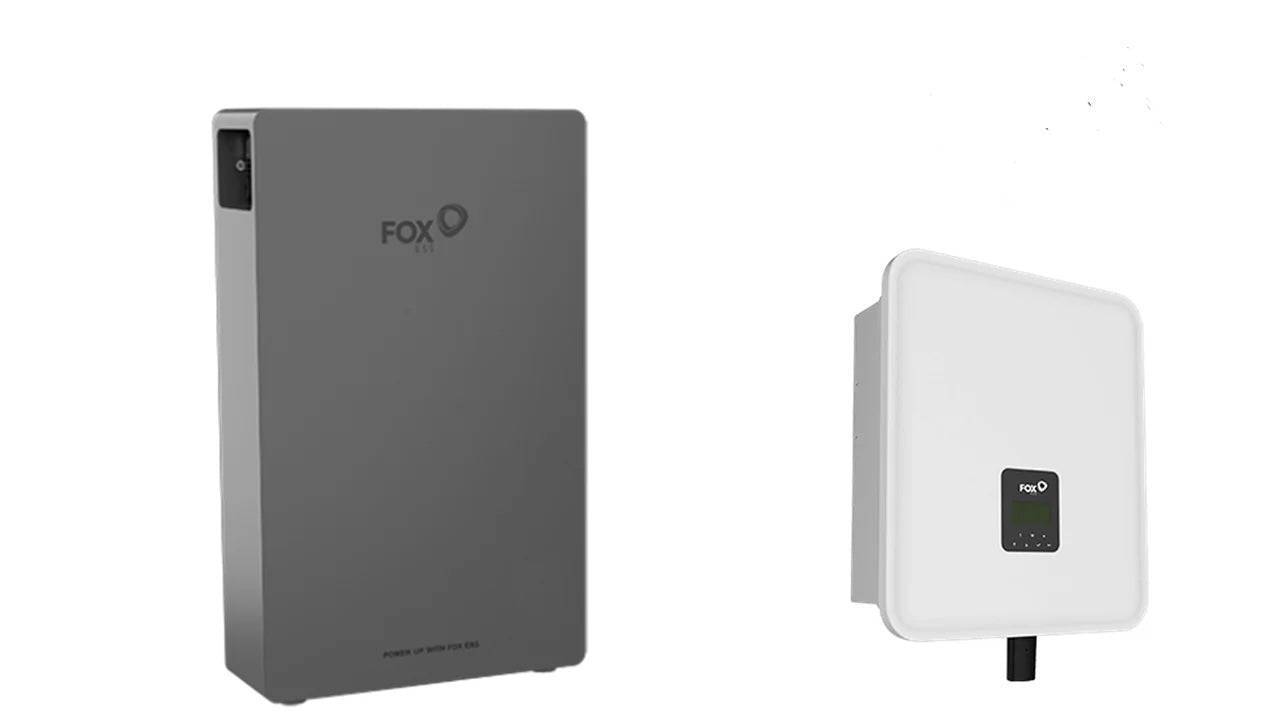

Kits with Fox chargers 3.7-6kWh hybrids & EP5/11 Battery Storage IP65 (suitable for outdoor) and with heating element. Selection of size hybrid inverters suitable for charging from the grid and from solar.

The EP5 is a high-performance, scalable battery storage system. With maximum flexibility, it is suitable for a wide range of storage applications.

(EP series are only compatible with the same EP model/size)

Features

  • 90% Depth of Discharge
  • Scalable to 4 batteries
  • Floor or Wall Mounting
  • Compact and easy to install
  • IP65 Rated
  • High voltage and high efficiency
  • Heating element
  • Warranty 10 years
EP5 Specs
  • Weight: 50.5kg
  • Nominal Energy: 5,180Wh
  • Nominal Voltage: 192 V
  • Maximum Charge/ Discharge Current: 27 A
  • EP5 Dimensions: 380 x 625 x 147 (W x H x D) mm
EP11 Specs
  • Weight: 100 kg
  • Nominal Energy: 10,360Wh
  • Depth of discharge: 90%
  • Nominal Voltage: 384 V
  • Maximum Charge / Discharge Current: 27 A
  • Recommended Charge Current: 13.5 A
  • Dimensions: 70 x 625 x 147 (w x h x d) mm
