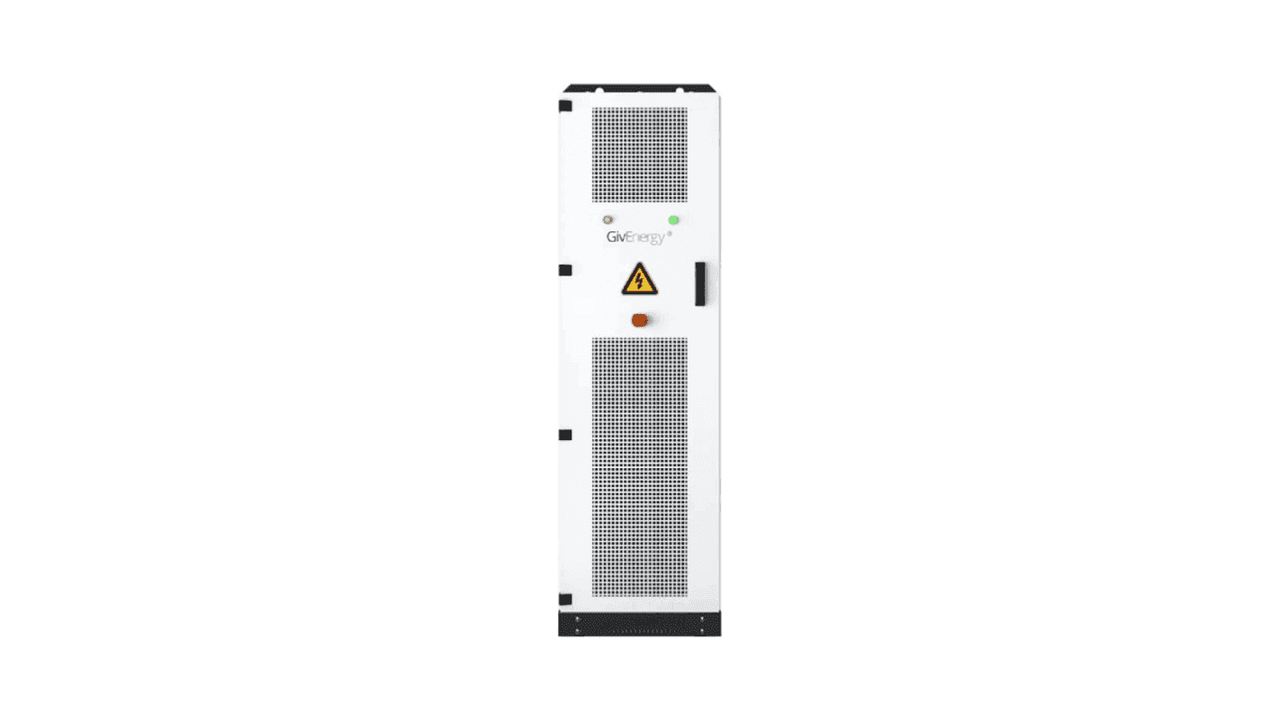

GivEnergy Commercial SME AIO 30kW 69kWh - inc EMS and Meter

GivEnergy Commercial SME AIO 30kW 69kWh - inc EMS and Meter

#2:  GIV-SME-AIO-30-69 Storage Systems - Commercial Storage

GivEnergy Commercial Product Brochure

GivEnergy Commercial AIO Data Sheet

GivEnergy Commercial AIO Manual

GivEnergy Commercial AIO Warranty

GivEnergy's All in One commercial battery pack is a compact and cost-effective commercial battery storage solution, combining battery, PCS and EMS in a single integrated system. With a plug and play easy install, space saving single integrated unit, having undergone rigorous safety checks, the inbuilt SPD and DC circuit breaker make the system safety even more robust. Lastly, cloud monitoring is simple and easy to use.

This system consists of:

• 9 x GivEnergy Commercial SME AIO 7.68kWh Battery (GIV-3U-BATT-7.6-ID)
• 1 x GivEnergy Commercial SME AIO Outer cabinet and built-in 30kW PCS (GIV-SME-ESS-CAB-ID)
• 6 x GivEnergy Commercial SME AIO High Voltage Box (GIV-3U-HVB-ID)
• 1 x GivEnergy Commercial SME AIO Energy Management System (GIV-EMS-C)
• 1 x GivEnergy Commercial Communication Meter (GIV-COM-METER-630)

Features

• Ready to go all-in-one system - 30kW AC coupled inverter, 9 x 7.68kWh batteries
• Fully integrated
• Scalable up to six units
• Multiple units can be stacked together
• Wi-Fi and LAN connectivity
• Interface with emergency and fault lights
• Intelligent air cooling
• IP20 rated
• Dimensions: 2050 x 600 x 800 (H x W x D) mm
• Warranty: 10 years standard

Specs

• Weight: 622.2kg
• Max Efficiency: 90%
• Nominal Energy: 69120 Wh
• Depth of Discharge: 90%
• Voltage 695 V
• Continuous Discharge Rate (Normal Use): 30580 W
• Maximum Discharge Rate (5 Minutes): 30580 W
• Surge Discharge Rate (5 Minutes): 30580 W
• Maximum Charge Rate (5 Minutes): 30580 W


Please note:

If installing without PV, 1 Communication Meter and 3 CTs are required. Please add the necessary CTs and select the CT size based on the site's incoming power limit either: 120A CT / 400A CT.
