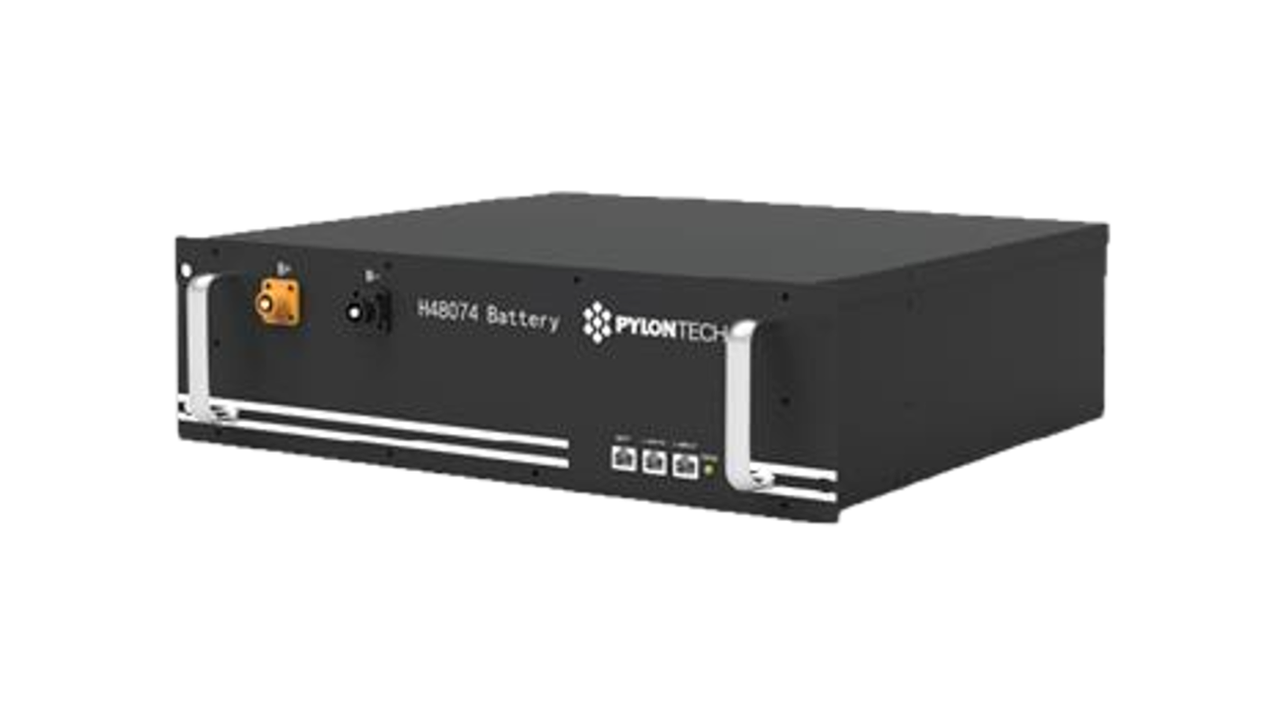

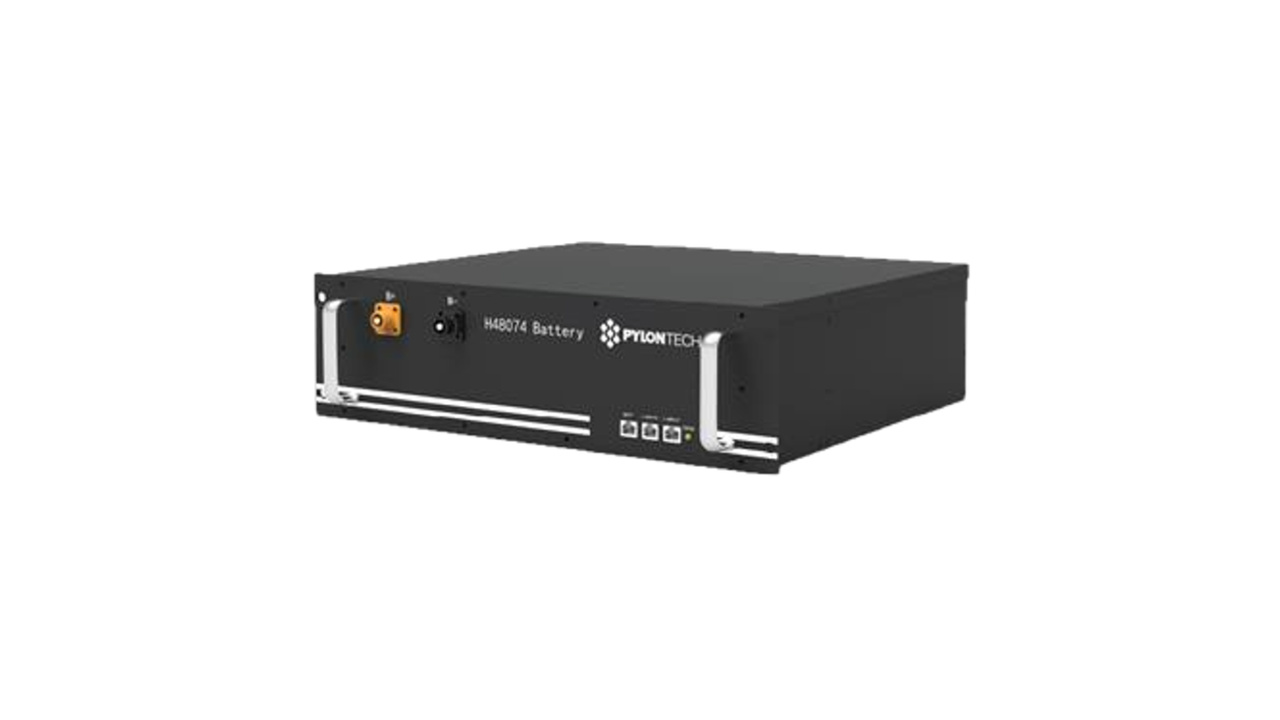

Pylontech PowerCube H2, 3.552kWh, 48V 74Ah for High Voltage series connection(H48074)
Please view our battery storage information page for sizing and selecting the right battery storage system for you.
#2: PYL-PC-H2-BATT Storage Systems - Li-ion Battery Pack
Pylon PowerCube H2 Datasheet
Pylon PowerCube H2 Operation Manual
Pylon PowerCube H2 Warranty
Collections not possible
To view complete Pylon kits please visit our Pylontech main page

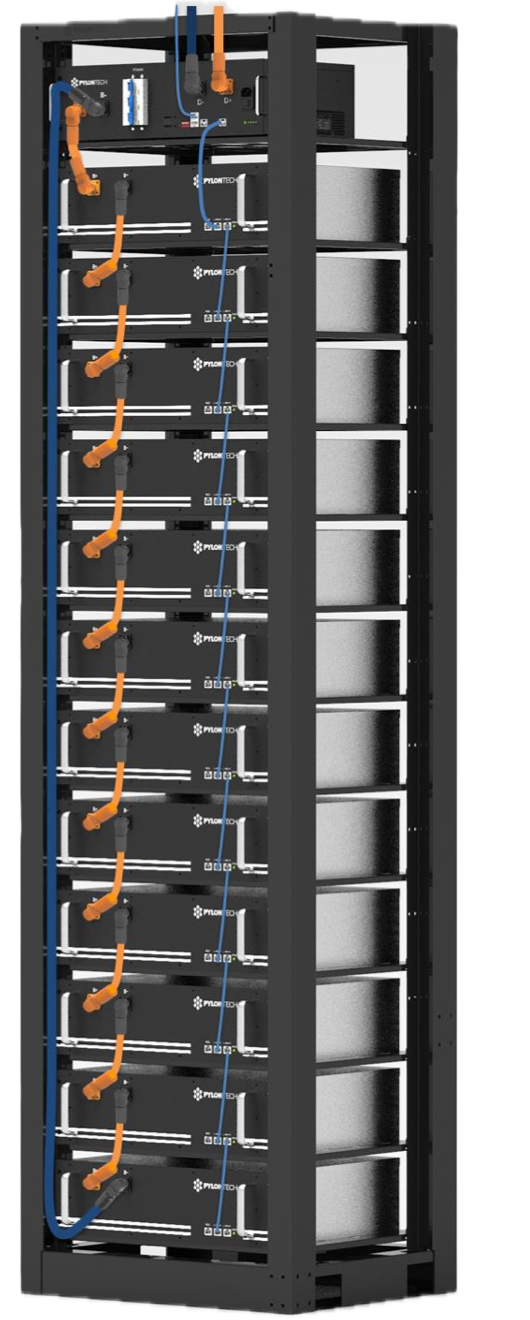

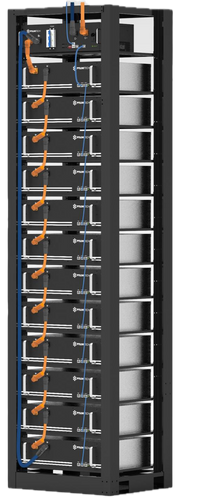

Pylontech's Powercube has a modular design, allowing for maximum flexibility for both rack mounted and container based constructions.
Units of 5 - 12 modules per system can be configured. The system can supply 240 - 576V for high Voltage applications.
Features
- Modular and Scalable
- 5 - 12 modules per rack and up to 6 racks in parallel
- Flexible BMS voltage range from 240VDC to 576VDC
- LiFePO4 technology for safety and long cycle life
- High System Safety
- BMS has charge, current and temperature protection
- Flexible configuration options
- Rack mounted or container-based systems

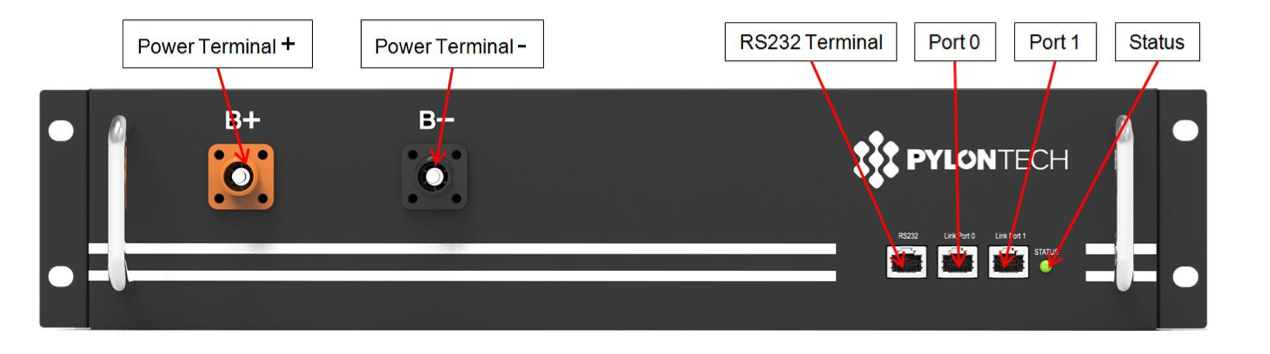

Please note: Each Battery module comes with 1 x Communication Cable and 1 x Orange Power Cable
Important:

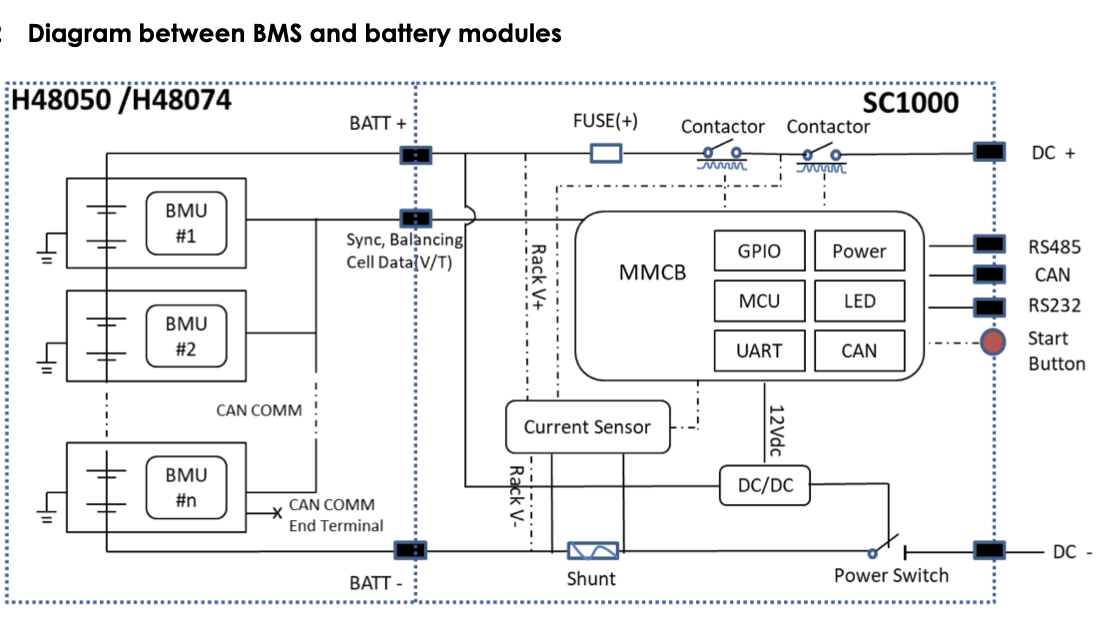

A BMS unit and external cable kit is required for each individual stack of batteries.
A minimum of 5x battery modules is required for BMS operation.
For installations with two BMS units and more, an MBMS is required.
To extend the warranty you have to register here: http://en.pylontech.com.cn/service/support
Specs
Weight: 31
Battery Type: Lithium Ion
Nominal Energy: 3552 Wh
Depth of discharge: 90.00 %
Voltage: 48 V
Continuous Discharge Rate (Normal Use):1776 W
Maximum Discharge Rate (5 Minutes): 3552 W
Surge Discharge Rate (15 Seconds): 3552 W
Maximum Charge Rate (5 Minutes): 3552 W
* In accordance with Pylontech's warranty conditions. The warranty is only valid if the batteries have been insatlled by an electrician or authorised installer.
