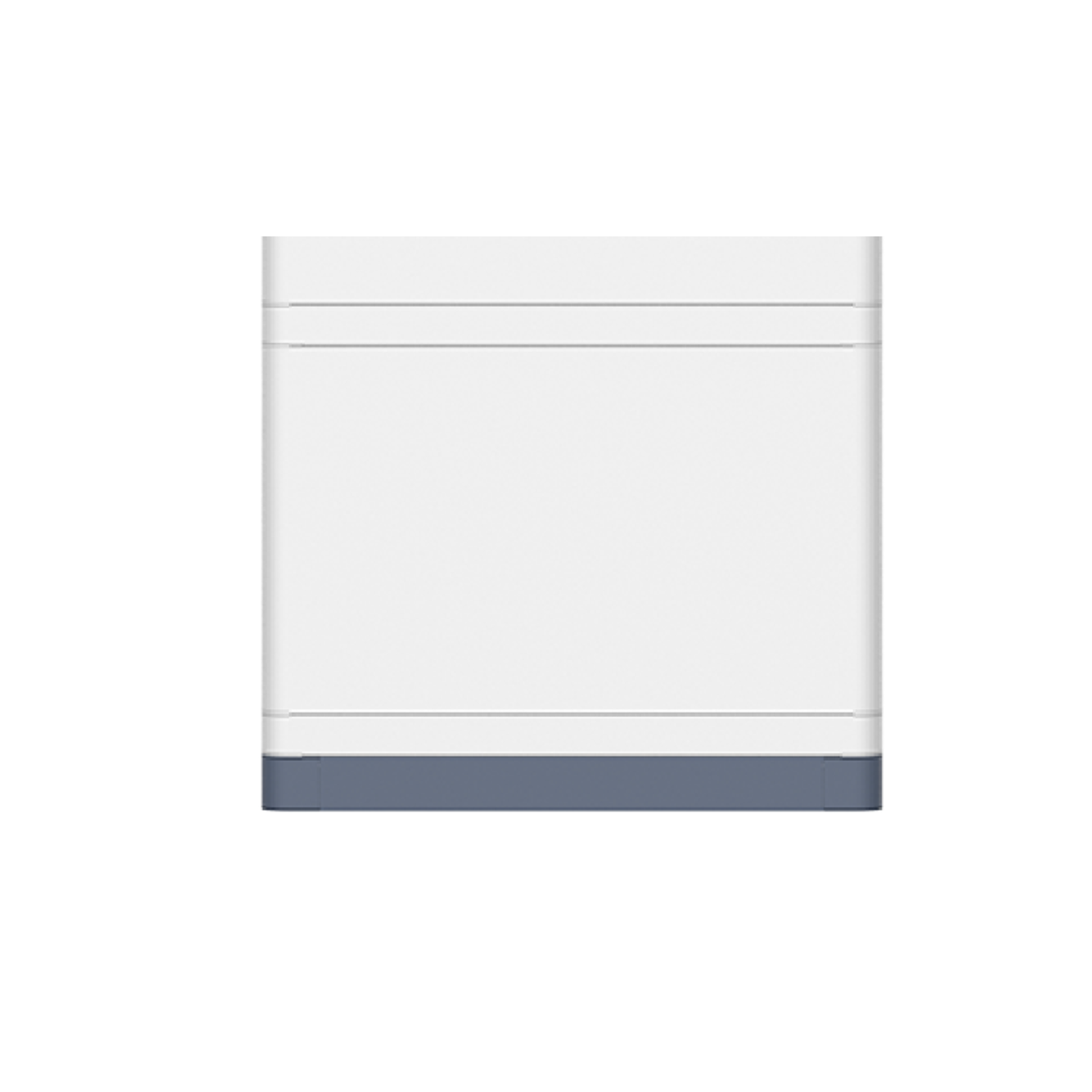

Pylontech Force H3 5.1kWh High Voltage Battery Module

Pylontech Force H3 5.1kWh High Voltage Battery Module

#2: PYL-F-H3-BATT

Please view our battery storage information page for sizing and selecting the right battery storage system for you.

Pylon Force-H3 Datasheet

Pylon Force-H3 Installation Manual

Pylon Force-H3 Warranty

 TUV Certificate

*Collections are not permitted due to health & safety regulations*

Pylontech Force H3

Pylontech's latest generation high-voltage battery storage system (LiFePO4)

Features

• Easy Install - plug and play

• Scalability - up to 6 x batteries towers can be connected in parallel

• Compatibility -
• 1C rating enables faster charging and discharging
• Globally certified
• Designed for 8000+ charging cycles or 15 years
• Remote monitoring via app

• Compatibility with other well known brands
• Warranty: 10 year standard

Specs

• Weight: 42kg
• Nominal Energy: 5,100Wh
• Depth of discharge: 90%
• Voltage: 102 V
• Continuous discharge rate (normal use): 4,080 W
• Maximum disccharge rate (5 minutes): 5,100 W
• Surge discharge rate (15 seconds): 5,100 W
• Maximum discharge rate (5 minutes): 5,100 W
