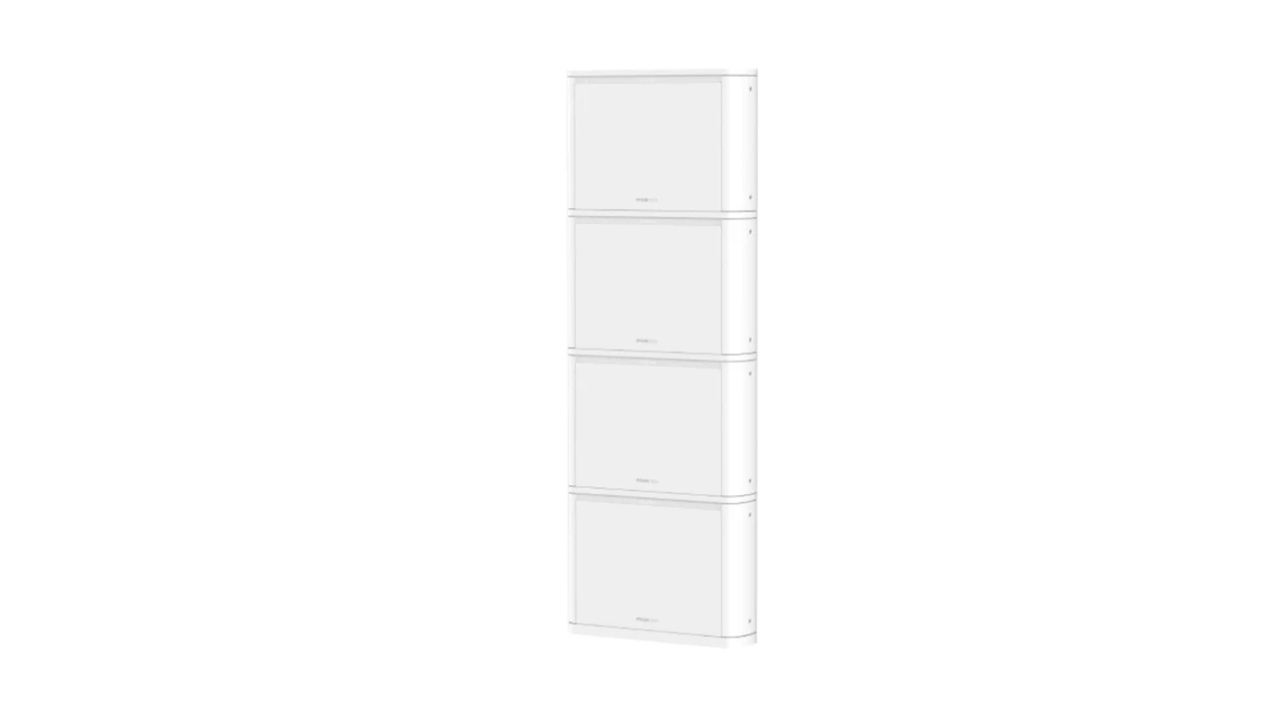

- Pylontech Pelio-L-5.12 LV x4 Battery Module 20.48kWh
#2: PYL-PELIO-L-4-20.48
Pylontech Pelio 5.12 Datasheet
Pylontech Pelio 5.12 Installation Manual
Pylontech Pelio WiFi Set up Guide
Pylontech Pelio 5.12 Warranty
*Collections are not permitted due to health & safety regulations*
Pylontech Pelio-L-5.12 LV Battery Module
This item contains:
4 x Pylontech Pelio-L-5.12 LV Battery Modules (PYL-PELIO-L-5.12)
Features
- Expandable modular design, up to 20*5.12kWh in parallel (3-modules stack for wall mounting and 4-modules stack for ground mounting)
- Lightweight but high capacity batteries
- Smaller footprint - saving space
- Both indoor and outdoor compatible
- Secured by self-developed cells modules and BMS
- Dual active protection mechanism enhances safety significantly
- Designed for 15+ years or >8000 charging cycles
- Compatible with Solis low voltage hybrid/AC inverters
- Remote monitoring via a plug-in wifi module (supplied with the installation kit, not with the battery itself)
Please note: For a wall mounted install, please add:
Pylontech Pelio Wall Mount for 1 - 3 batteries (PYL-PELIO-WALL-MOUNT)
For a Ground mounted install, please add:
Pylontech Pelio Ground Mount for 1 - 4 batteries (PYL-PELIO-GROUND-MOUNT)
Specs
- Weight: 180 kg
- Rated Power: 20,480 W
- Battery Type: Lithium Ion
- Nominal Energy: 20,480 Wh
- Depth of discharge: 95.00 %
- Voltage: 51 V
- Continuous Discharge Rate (Normal Use): 5,120 W
- Maximum Discharge Rate (5 Minutes): 5,120 W
- Surge Discharge Rate (15 Seconds): 6,144 W
- Maximum Charge Rate (5 Minutes): 5,120 W
