Renusol Console+ bucket for flat roof or ground mount Max module length: 1550-2150 mm

Renusol Console+ bucket for flat roof or ground mount Max module length: 1550-2150 mm
#2: REN-520075-K
#3: 2089

Renusol Brochure

Renusol Datasheet

Minimum order - 5

Renusol Console+ bucket - minimum order of 5 units unless ordered together with solar panels

For panels of more than 1014mm width the elongation rails are required.

Renusol Console+ 5200 75 K

The ConSole+ provides an angle of 15 degrees.

The ConSole+ assembly system is the ideal solution for installing PV modules on flat roofs with a pitch of up to 5 degrees without roof penetration. Most commercially available framed standard PV modules fit the ConSole+.

The ConSole+ is weighed down with ballast e.g. gravel, paving slabs, etc... in order to resist the windloads. The necessary weight of the ballast depends on the height of the building, its location and the condition of the ground and the wind and snow loads. Reference values for the necessary ballasts are contained in "Preparing the Assembly - Point 2" in the table of Page 5 of the installation manual.

Details:
- Colour: black
- Suitable for flat-roof- and ground mounting installations
- For framed PV-modules

Technical Data:
- Material: HDPE, Aluminium and stainless steel
- Max module length: 1550-2150 mm
- Holes gap - width: 895-1014 mm
- Holes gap - length: 690-1180 mm

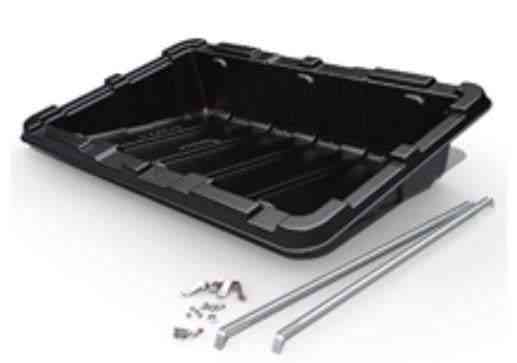

Other Contents:
- 1 x 500075 ConSole+
- 2 x 400005 ConSole U-Profile 1035 mm
- 4 x 900027 Hexag# screw DIN933-M6x20 A2-70
- 4 x 900028 Washer DIN9021-6,4-A2
- 4 x 900029 Self-locking hexag# nut DIN985-M6-A2
- 4 x 900106 ConSole Clip
- 4 x 900115 Hexag# screw DIN7504-ST5,5x25-A2-SW8
