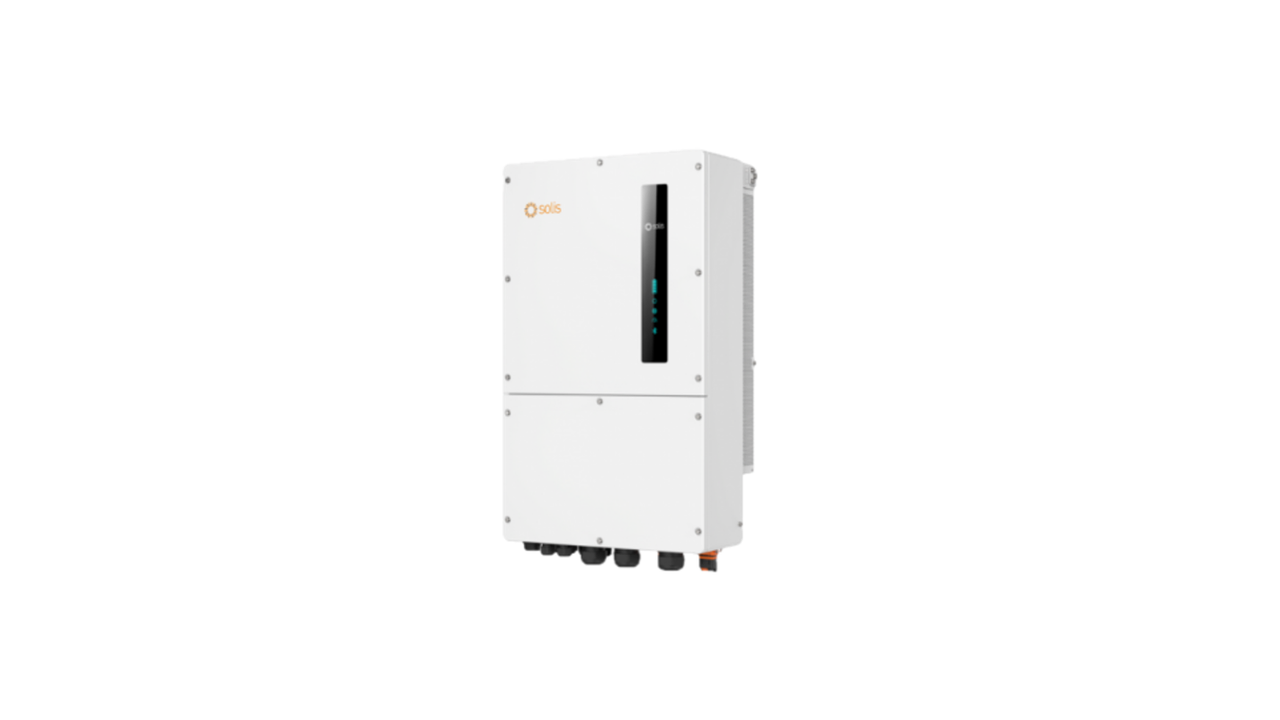

Solis Three Phase 50kW High Voltage Hybrid Inverter

Solis Three Phase 50kW High Voltage Hybrid Inverter

#2: SOL-S6-EH3P50K-H  Storage Systems - Hybrid Inverter

Solis S6 50kW Inverter Data Sheet

Solis S6 50kW Inverter Manual & Install Guide

Solis S6 50kW Inverter Warranty

Solis S6 50kW Product Compatibility List

*Collections are not permitted due to health & safety regulations*

Please note: Includes S4 Wi-Fi/LAN stick and Solis Cloud support.

The Solis S6 Hybrid inverter offers flexibility with its 3 or 4 MPPTs. Its high input current ensures compatibility with modern high-performance modules. If there is power grid failure, the integrated switching device means selected loads can still be supplied with emergency power.

Product Features

• 4 MPPTs / 8 strings /  up to 96kW usable PV input
• 50A per 10kW maximum charge/discharge rating
• 140A/70A+70A max charge/discharge - on 2 independently controlled ports
• String current up to 20A
• 2 second 160% surge power to accommodate back-up load
• Supports maximum of 6 inverters (up to 300kW)
• Supports unbalanced and half-wave loads on the grid and backup port
• Supports peak shaving control
• UPS transfer time - less than 10 minutes
• Integrated AFCI (DC arc-fault circuit protection)
• LCD display and remote firm upgrades

Specs

• Weight: 73 kg
• Rated Power: 50,000 W
• Min PPT Voltage: 180 V
• Max PPT Voltage: 850 V
• DC Startup Voltage: 180 V
• DC Shutdown Voltage: 150 V
• Max Input Voltage: 1,000 V
• Max DC Power: 100,000 W
• Max AC Power (5 Minutes): 50,000 W
• Surge AC Power (1 Second): 80,000 W
• Max DC Current: 160 A
• Max DC Inputs: 8
• Has DC Fuses: 0
• Connector: MC4
• Included Connectors: 8
• Euro Efficiency: 97.4%
• Transformer: none
• MPPT Quantity: 4
• Has Integrated DC Switch: Yes
• Warranty: 5 years
• Extendable warranty for 5/10/15 years
