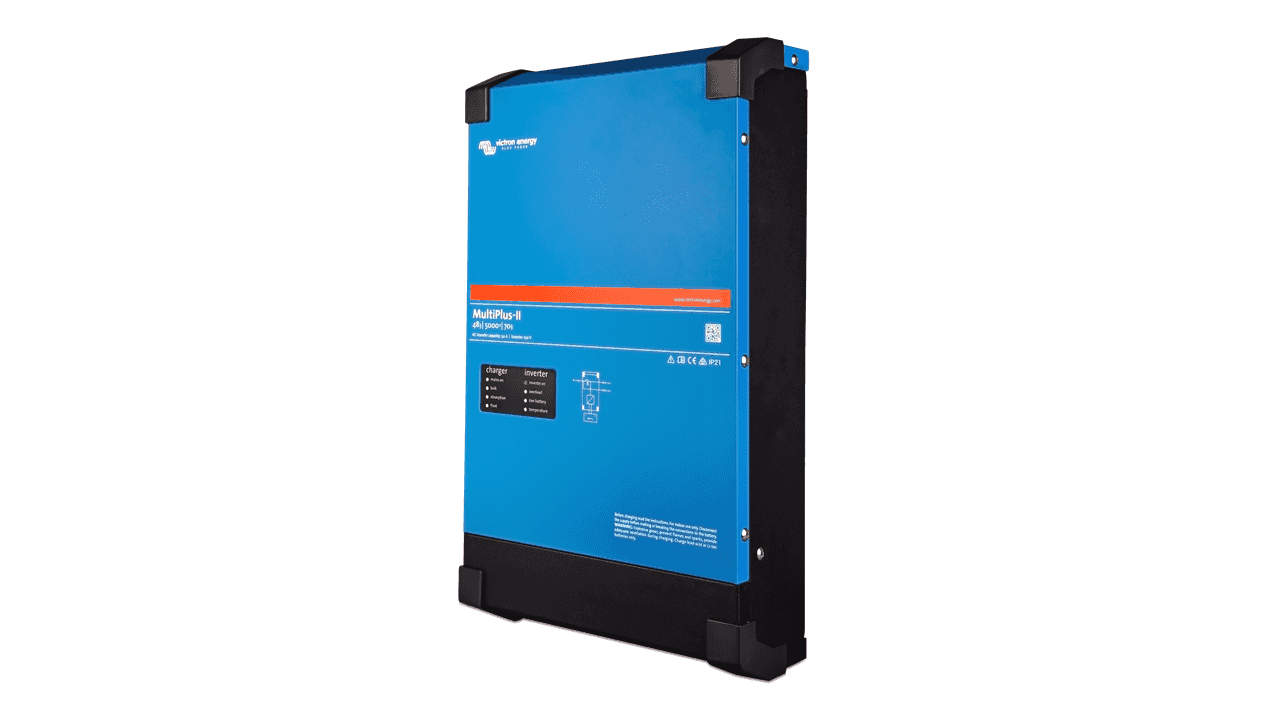

Victron MultiPlus-II 48/5000/70-50 230V

Combining the functions of the incredible MultiPlus and the MultiGrid, it has all the features of the MultiPlus range, plus an external current transformer option to implement PowerControl and PowerAssist and to optimise self-consumption with external current sensing (max. 32A). With a powerful true sine wave inverter, a sophisticated battery charger and a high-speed AC transfer switch in a single compact enclosure. Reliability and performance are paramount to Victron.

Features:

• A MultiPlus, plus ESS (Energy Storage System) functionality - all the functions of the MultiPlus range, with built-in anti-islanding and long list of worldwide country approvals

• PowerControl and PowerAssist - ability to set maximum generator or grid current, so that extra power is used for battery charging or limited peak power requirements.
• ESS - suitable for off-grid or grid connected PV systems
• On-site monitoring and control - settings can be changed in a matter of mins with an MK3-USB interface
• Remote Configuring and monitoring - Install a GX device to display on the VRM portal

Victron are a global leader in off-grid and battery storage systems, with over 40 years of expertise in the fields of renewable energy and portable power systems. We have been working with the Dutch company for many years now and have found the quality of their products second to none; the company is also renowned for it's community support and ease of contact.

Installation is a simple matter using the detailed instruction manual with fully illustrated colour wiring and mounting diagrams. The true benefit of the Multiplus is the software functionality and advanced protection systems, with regular firmware updates constantly adding new features as and when the community request them.

Specifications:

• DC Input: 38-66V (48V)
• Continuous Output Power: 5000VA (4000W)
• Peak Power: 9000W
• Maximum Efficiency: 96%
• Zero-Load Power: 2-18W
• AC Input: 187-265VAC 45-65HZ
• Max Charge Current: 70A (48V)
• AC Transfer Relay: 50A
• Dimensions: 565 x 323 x 148mm
• Weight: 29kg
• Warranty: 5 years
