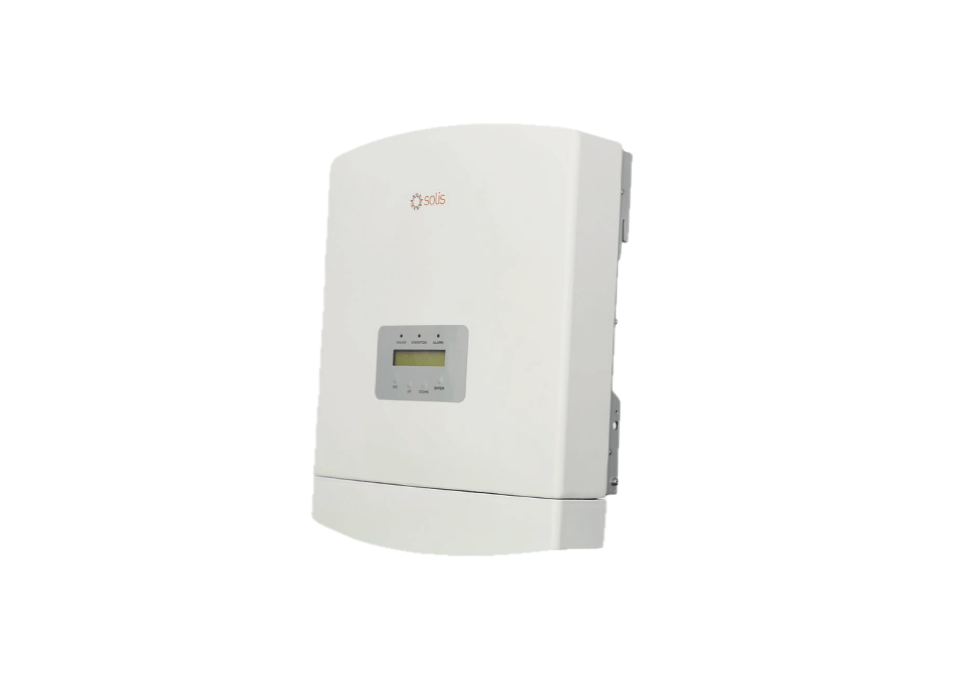

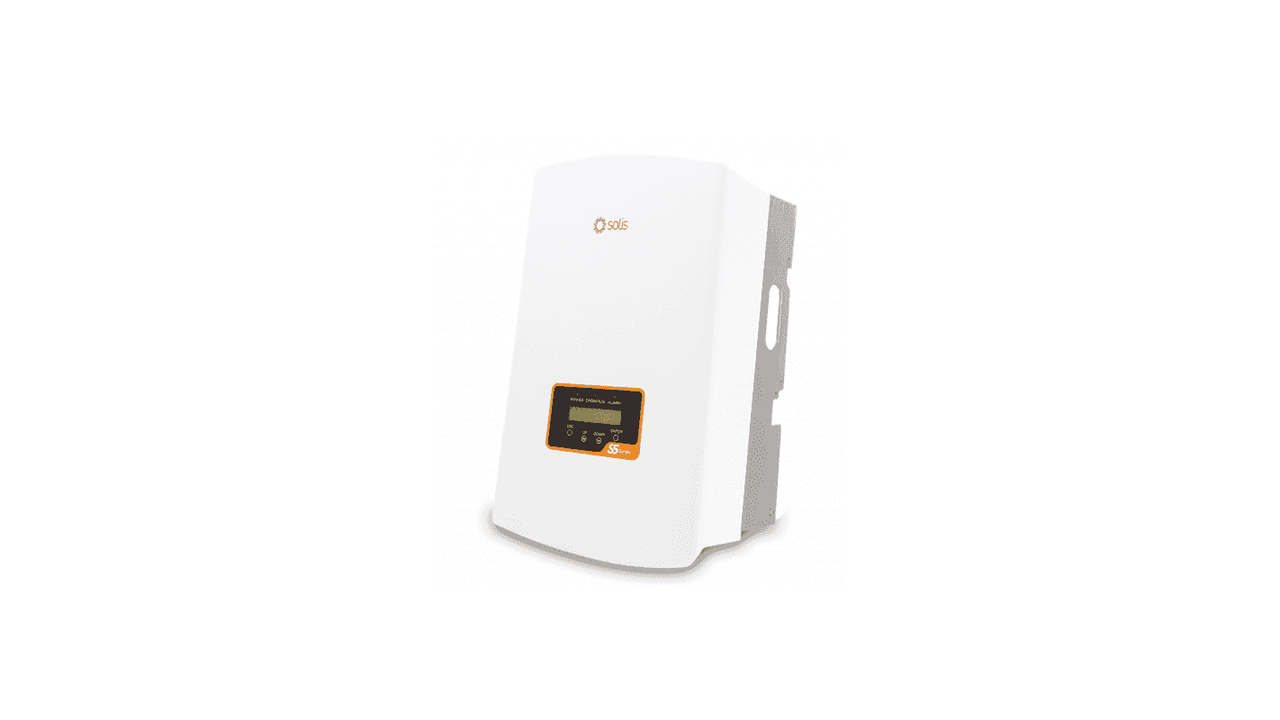

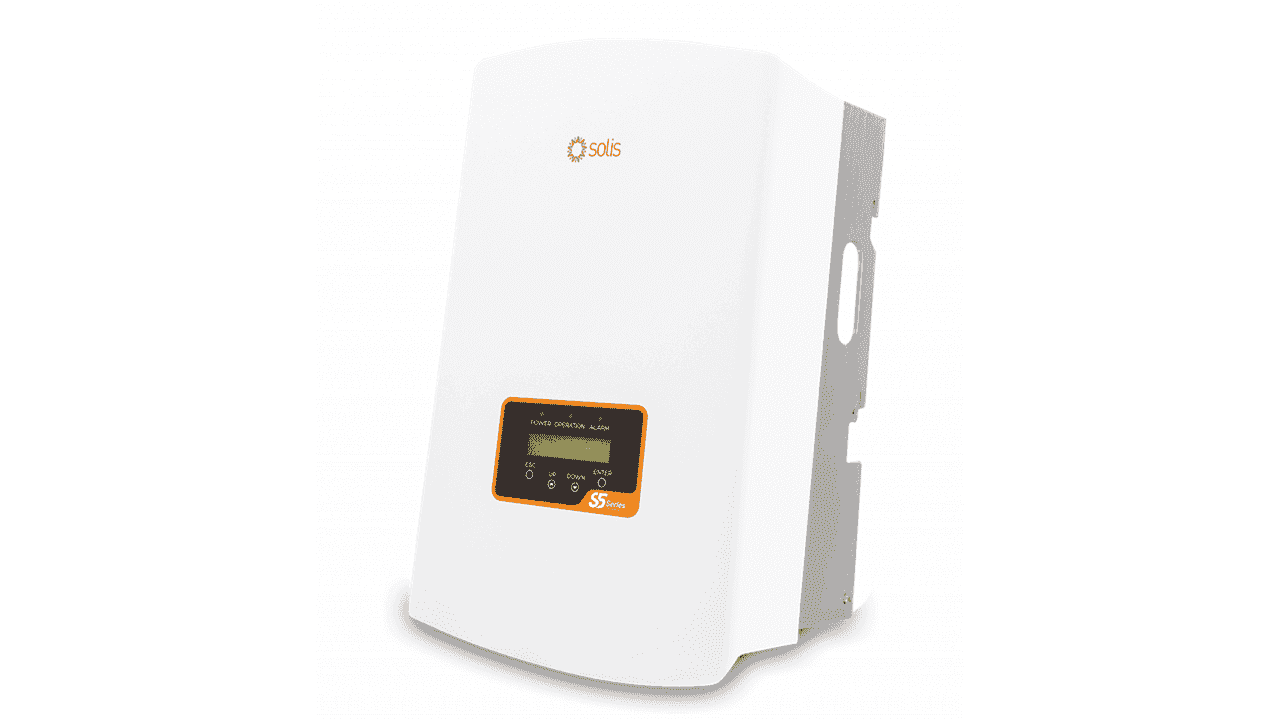

Solis 2.5kW S6 Dual MPPT - Single Phase with DC

#2: SOL-2.5-S6-DT-DC

#4: S6-GR1P2.5K-DC

Solis Inverter 2.5kW Data Sheet

Solis Inverter 2.5kW Manual

Solis Inverter 2.5kW Warranty

Solis Inverter 2.5kW G100 Certificate

*Collections are not permitted due to health & safety regulations*

Solis S6 is the latest generation of residential inverters from Solis. This range of inverters are leaders in affordable small residential and commercial rooftop installations.

Product Features

• Maximum string input current 14A
• Easy installation: Integrate with export power control function and DRM function.
• Max. Efficiency over 97.7% European efficiency over 97.1%
• Wide input voltage range for better generation and low startup
• Dual MPPT design with precise MPPT algorithm
• Export Limitation built in - Requires CT clamp (sold separately)
• Integrated AFCI (DC arc-fault circuit protection)
• Rated IP66
• 5-year standard warranty, extendable to 10 or 20-years!

Supplier Part No: S6-GR1P2.5K-DC
Weight: 11 kg
Rated Power: 2,500 W
Min PPT Voltage: 60 V
Max PPT Voltage: 550 V
DC Startup Voltage: 60 V
DC Shutdown Voltage: 50 V
Max Input Voltage: 550 V
Max DC Power: 3,750 W
Max AC Power (5 Minutes): 2,800 W
Surge AC Power (1 Second): 2,800 W
Max DC Current: 28 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 2
Euro Efficiency: 96.5 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 years
