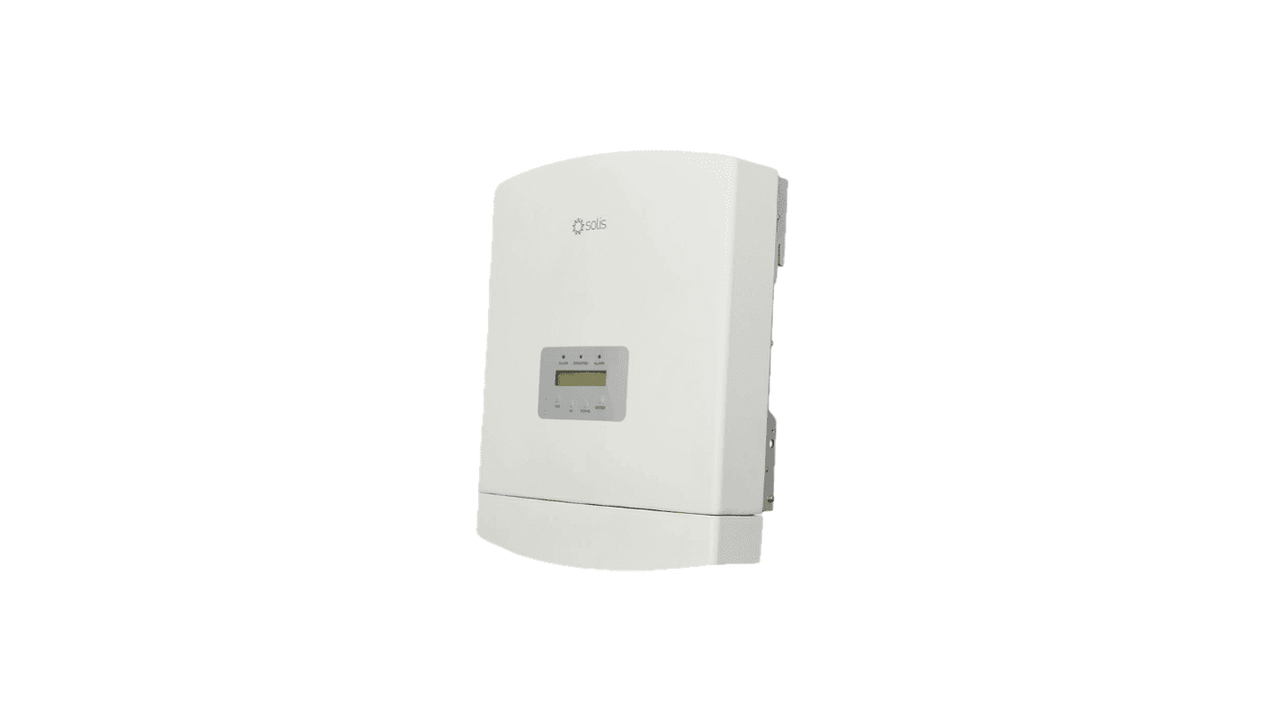

Solis S6 3kW 2MPPT 1PH Inverter - with DC isolator

Solis S6 3kW 2MPPT 1PH Inverter - with DC isolator (No Export Limitation)

#2: SOL-3.0-S6-DT-EU-DC Inverters - Main Unit

Solis Inverter 3kW Data Sheet

Solis Inverter 3kW Manual

Solis Inverter 3kW Warranty

Solis Inverter 3kW G100 Certificate

*Collections are not permitted due to health & safety regulations*

For remote monitoring: Solis Data Logging Stick.

For additional 10 year warranty - click here

The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.

Product Features

• Super high frequency switching technology with maximum efficiency of 97.1%
• Max PV Power of 4.5kW
• DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
• Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
• Intergrated Export Power Manager (EPM)
• Integrated AFCI (DC arc-fault circuit protection)
• Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
• 5-year standard warranty

Specs

• Weight: 7.7 kg
• Rated Power: 3,000 W
• Min PPT Voltage: 90 V
• Max PPT Voltage: 500 V
• DC Startup Voltage: 90 V
• DC Shutdown Voltage: 80 V
• Max Input Voltage: 600 V
• Max DC Power: 4,500 W
• Max AC Power (5 Minutes): 3,300 W
• Surge AC Power (1 Second): 3,300 W
• Max DC Current: 14 A
• Max DC Inputs: 1
• Has DC Fuses: 0
• Connector: MC4
• Included Connectors: 2
• Euro Efficiency: 96.7%
• Transformer: None
• MPPT Quantity : 1
• Has Integrated DC Switch: Yes
