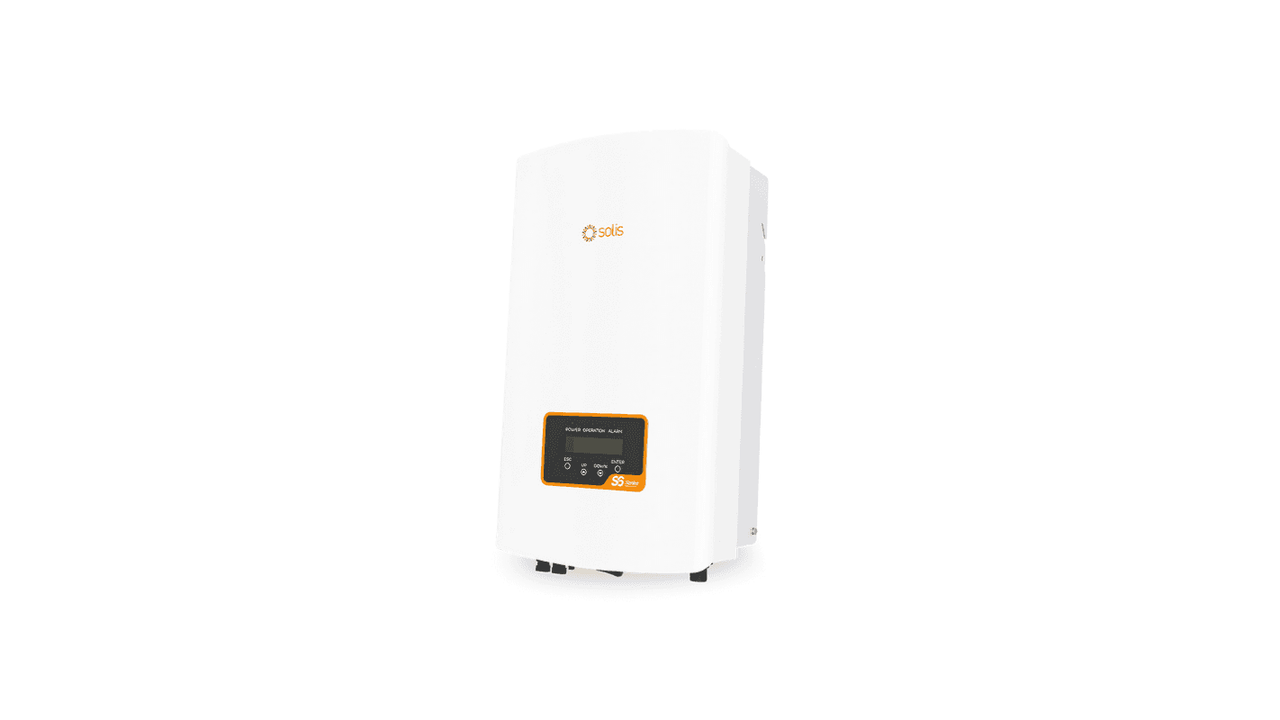

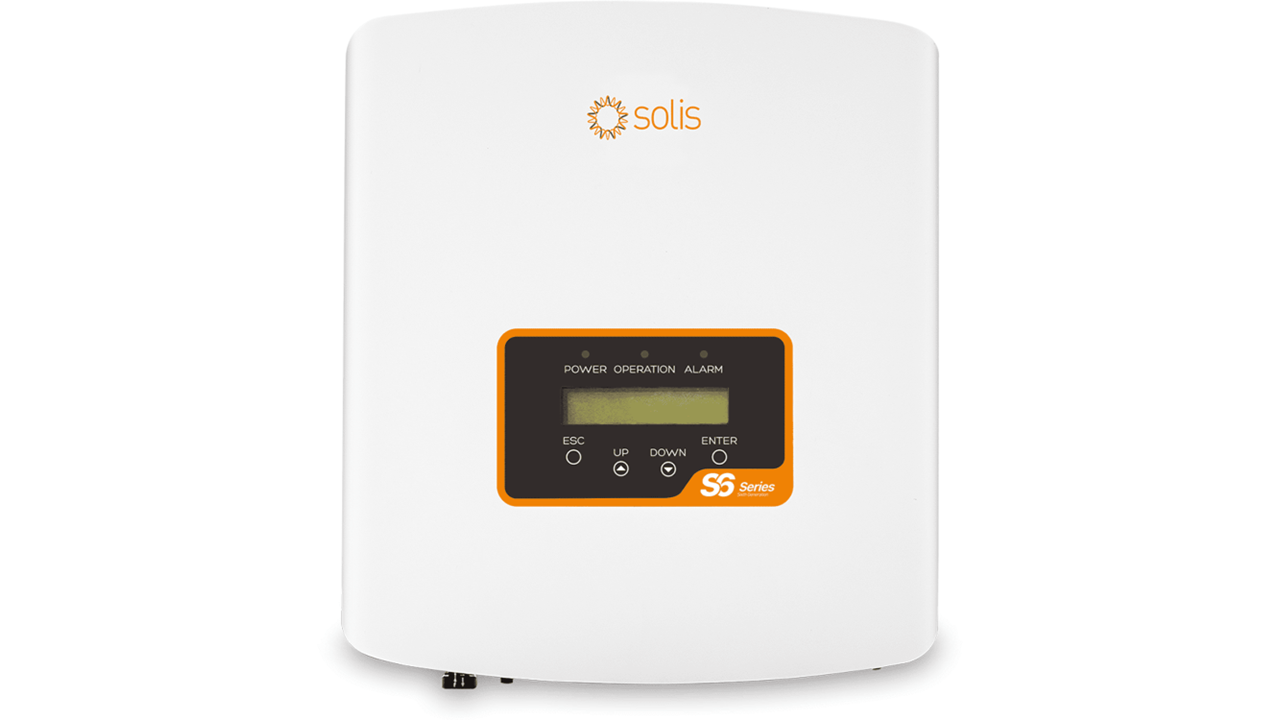

Solis S6 Mini 2kW 1MPPT 1PH Inverter - with DC isolator (No Export Limitation)

• Solis S6 Mini 2kW 1MPPT 1PH Inverter - with DC isolator (No Export Limitation)

#2 SOL-2.0-MINI-S6-EU-DC Inverters - Main Units

Solis S6 2kW Inverter Data Sheet

Solis S6 2kW Inverter Manual

Solis S6 2kW Inverter Warranty

Solis Inverter 2.0kW G100 Certificate

Collections are not permitted due to health & safety regulations

For remote monitoring: Solis Data Logging Stick.

For additional 10 year warranty - click here

Rating: 2,000W

Phases: 1

The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.

Features

• Super high frequency switching technology with maximum efficiency of 96.6%
• Max PV Power of 3kW
• DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements
• Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
• Intergrated Export Power Manager (EPM)
• Integrated AFCI (DC arc-fault circuit protection)
• Integrated DC switch for safe PV maintenance


Specs

• Weight: 7.4kg
• Rated Power: 2,000 W
• Min PPT Voltage: 90 V
• Max PPT Voltage: 500 V
• DC Startup Voltage: 90 V
• DC Shutdown Voltage: 80 V
• Max Input Voltage: 600 V
• Max DC Power: 3,000 W
• Max AC Power (5 Minutes): 2,200 W
• Surge AC Power (1 Second): 2,200 W
• Max DC Current: 14 A
• Max DC Inputs: 1
• Has DC Fuses: 0
• Connector: MC4
• Included Connectors: 1
• Euro Efficiency: 96.6 %
• Transformer: None
• MPPT Quantity: 1
• Has Integrated DC Switch: Yes
• Warranty: 5 years standard / Extended: 10 - 20 years
