Solis Solar Inverter 2.5kW Mini 6S Single Tracker

Solis Solar Inverter 2.5kW Mini 6S Single Tracker

#2: SOL-2.5-MINI-S6-DC Inverters - Main Units

#4: S6-GR1P2.5K-M-DC

Solis Inverter 2.5kW Data Sheet

Solis Inverter 2.5kW Manual

Solis Inverter 2.5kW Warranty

Solis Inverter 2.5kW G100 Certificate

*Collections are not permitted due to health & safety regulations*

For additional 5 year warranty - click here.


Rating: 2,500W
Phases: 1

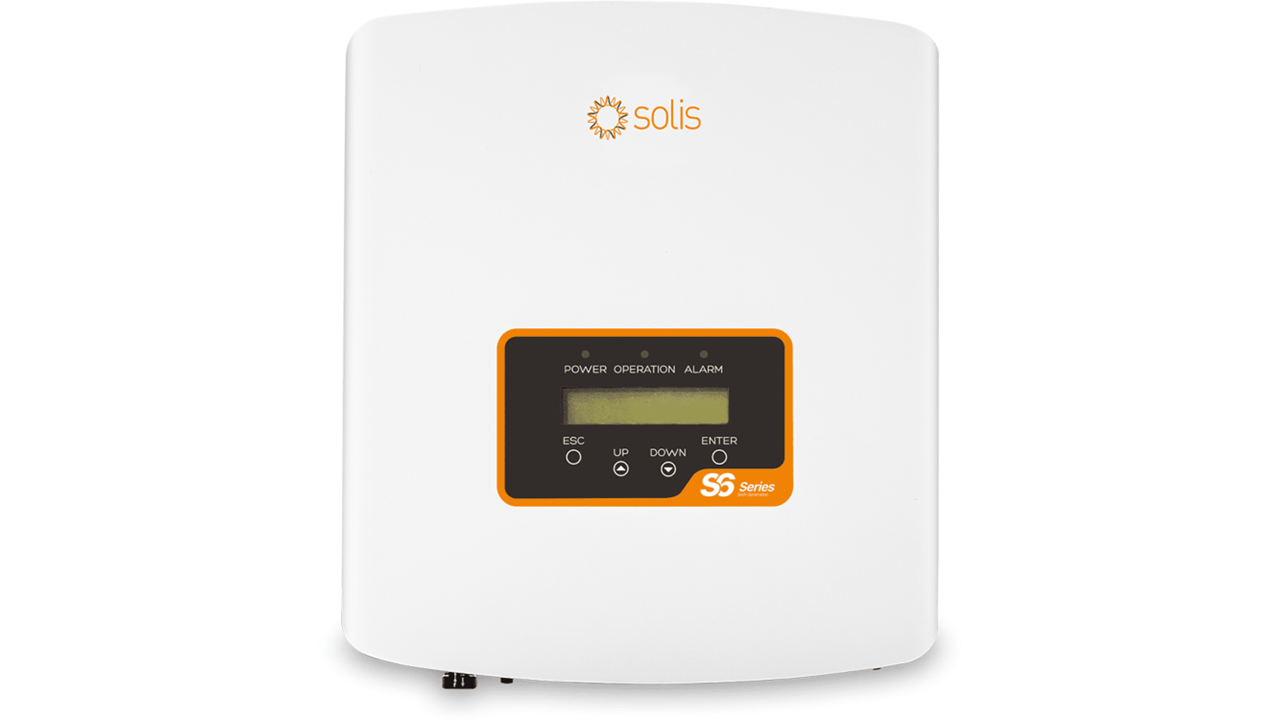

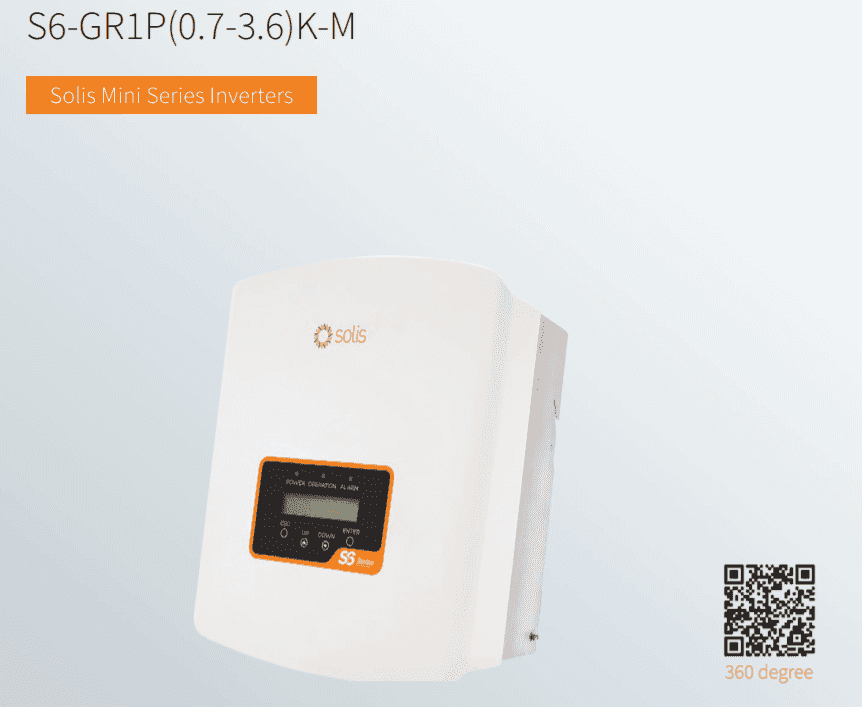

The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.

Product Features:
Super high frequency switching technology with maximum efficiency of 97.1%
Max PV Power of 3.8kW
DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
Wide voltage range - Ultra low start-up voltage of 90V and max PV input voltage of 600V
Intergrated Export Power Manager (EPM)
Integrated AFCI (DC arc-fault circuit protection)
Integrated DC switch for emergency shut-down of PV power or safe PV maintenance



Weight: 7.7 kg
Rated Power: 2,500 W
Min PPT Voltage: 90 V
Max PPT Voltage: 500 V
DC Startup Voltage: 90 V
DC Shutdown Voltage: 80 V
Max Input Voltage: 600 V
Max DC Power: 3,800 W
Max AC Power (5 Minutes): 2,750 W
Surge AC Power (1 Second): 2,750 W
Max DC Current: 14 A
Max DC Inputs: 1
Has DC Fuses: 0
Connector: MC4
Included Connectors: 1
Euro Efficiency: 96.7 %
Transformer: None
MPPT Quantity: 1
Has Integrated DC Switch: Yes
Warranty: 5 years
