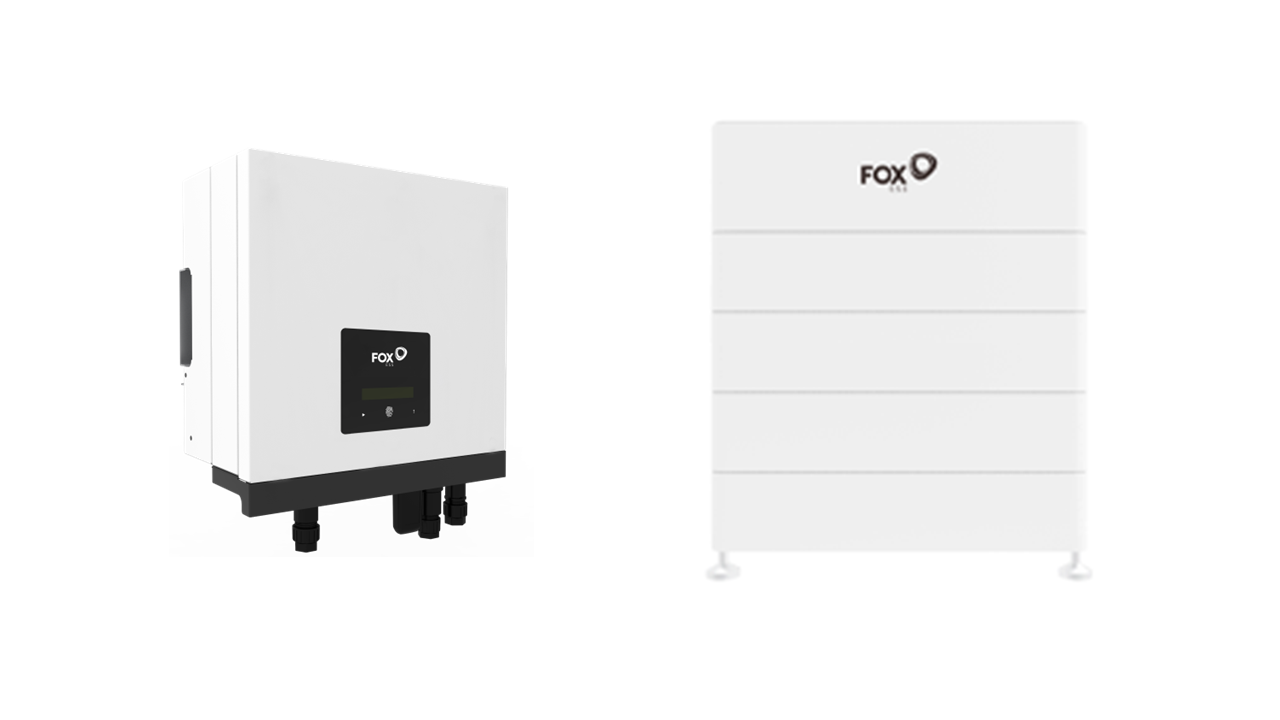

Fox ESS High Voltage complete kit: Cube HV ECM2900 14.4kWh & Fox AC 5.0kW charger
#2
Complete kit includes:
1 x FE-AC1-5.0
1 x FE-HV-ECM-2900-4A2C Fox ECS 2.88kWh HV Battery (Master)-V2.0
4 x FE-HV-ECS-2900-4A2C Fox ECS 2.88kWh HV Battery (Slave)-V2.0
Fox Energy Cube HV ECM2900, 14.4kWh 1x Master 4x Slave
Energy cube is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 20.16 kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
-
2.88kWh Capacity
- Scalable to 20.16kWh
- 90% Depth of Discharge
- Wide Temperature Tolerence
- Easy Installation
- CAN/RS485 Communication
- High Voltage
The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.
Weight: 67.1 kg
Battery Type: Lithium Ion
Nominal Energy: 2880 Wh
Depth of discharge: 90.00 %
Voltage: 115 V
Continuous Discharge Rate (Normal Use): 5760 W
Maximum Discharge Rate (5 Minutes): 5760 W
Surge Discharge Rate (15 Seconds): 7488 W
Maximum Charge Rate (5 Minutes): 5760 W
Charger - Fox AC 5.0kW
The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also available via your smartphone or web portal.
Uses high voltage batteries FE-HV2600 V2
IP65 rated - suitable for outdoor installations
Remote monitoring via web portal or smartphone
Easy to expand battery capacity
Dual MPPT - ensure optimal solar production
High round-trip efficiency of 97% BMS unit required 2 x HV2600 batteries minimum
CT Clamps and meter are included in the box
