Projoy DC Isolator 25A 2pole 1string

#1: PEDS150-EL25R-2 Switches - DC Isolators

#17: 25a 2-pole 1-string DC isolator - Projoy

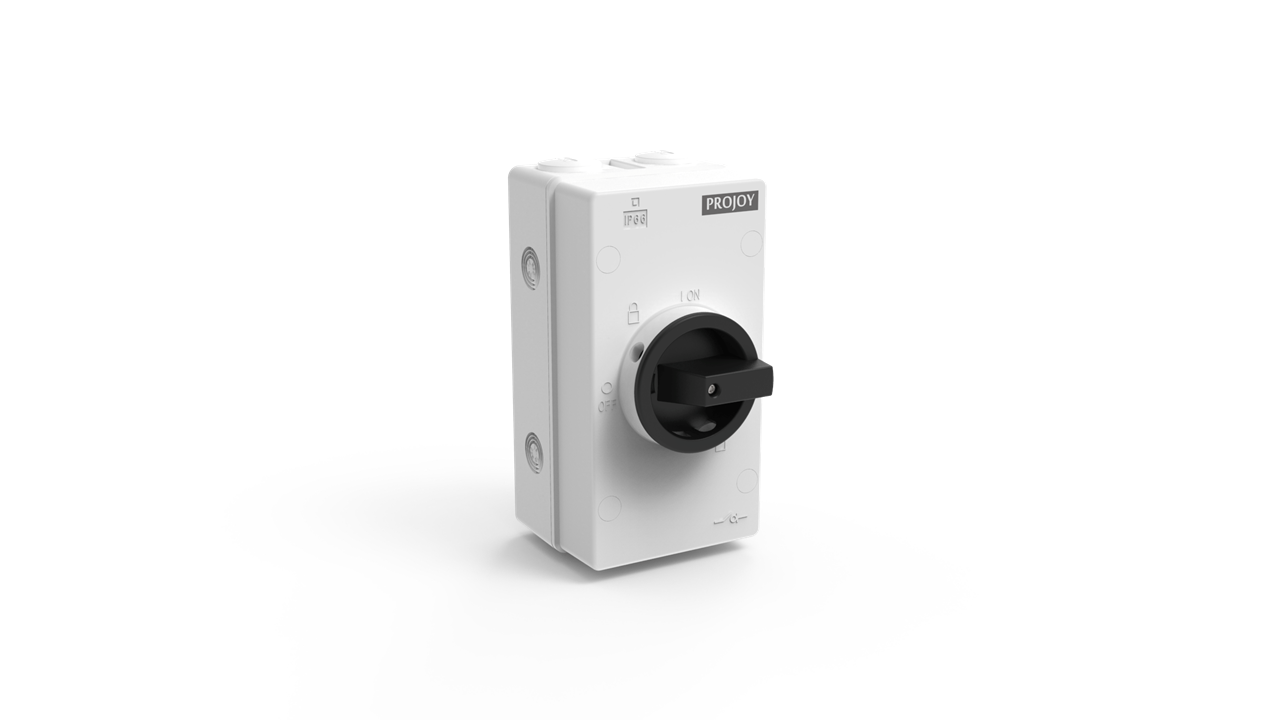

PEDS-EL Enclosure Series DC Isolator 25A

• Modular design, DC insulation voltage 1500V, compact structure
• IP66 box design, switch rotation operator with three lockable positions, to prevent misoperation
• Suitable for different specifications of waterproof cable connector
• The zero line bridge with angle design makes the connection easier
• With sufficient internal space and good heat dissipation effect, the whole machine can work under -40℃-70℃ with full load
• High - speed "on - off" switching mechanism, using energy storage spring, fast switching, maximum switching time is less than 5ms
• Contact self-cleaning design, reduce the resistance and energy consumption of DC switch, extend the life of switch
• Magnetic arc extinguishing and gate arc extinguishing are used to suppress the arc effectively
• Passed IEC / EN60947-3: 2009+A1+A2, AS60947.3, UL508I, GB / T14048.3, with TUV, CE, CB, SAA, UL certification

Weight: 0.25 kg
Poles: 2
Max Cable: 16 mm2
Max Voltage: 1,500 V
Rated Current: 20 A
Rated Voltage: 800 V
Rated Current: 11 A
Rated Voltage: 1000 V
Rated Current: 25 A
Rated Voltage: 600 V
