Sunsynk 3ph 12K Hybrid Inverter solar & wind Inverter
#5: SYNK-12K-SG0XLP3
Sunsynk 3ph Data Sheet
Sunsynk 3ph Manual
*Collections are not permitted due to health & safety regulations*
The Sunsynk Three-Phase Hybrid Storage Inverters are highly efficient power management tools for three-phase grid applications. These inverters allow the user to control power flow from multiple sources such as solar, main electrical grids, and generators, and effectively store and deliver electric power to your applications.
These amazing three-phase inverters have a unique feature. They can operate and balance the load, which means you can have 20% connected to one phase, 20% to another, and 60% to the third phase, and it still gives perfect phase rotation. No other inverter in their class can offer this feature.
Max. AC Input Power 13200W
Max. PV Input Power 15600W
Max. AC Output Power 13200W
Battery Discharge Power 12000W
Max. Discharge Current 240A
Frequency droop control
Up to 4 inverters in parallel
Inveractive display
RS485 Wi-Fi interface
5 year warranty
Product Features
Dual MPPT design
Compatible with most Lithium-ion batteries and Lead Acid batteries
Mobile App for monitoring
IP65 rated
Automatic switching from Grid-Tied to Off-Grid mode
Zero export function

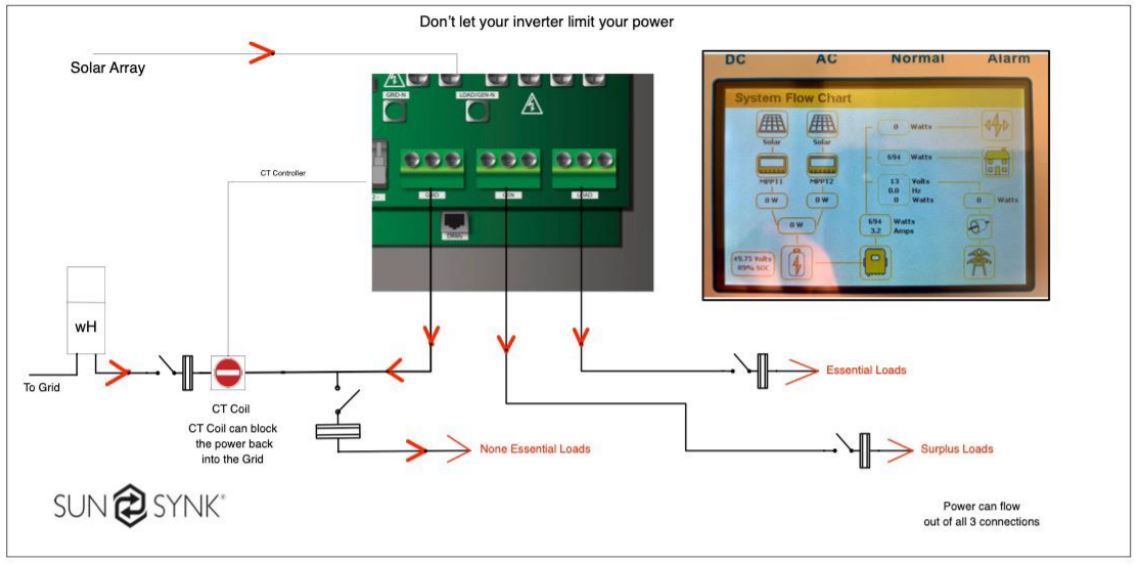

Essential and Non-Essential Loads outputs
Comes with the Wi-Fi logger and CT
Compatible with SolarMan App for Monitoring
Take complete control of your inverter by using the Sunsynk App.
Start by visiting the Apple App Store, or Google play store and searching "Sunsynk Logger". Alternatively, open your prefered web browser and search www.sunsynk.net.
Real time push notifications. For example Instant notification if you have a power cut or you are running on generator, or batteries.
Change all settings remotely. Our data logger allows you to change and edit all settings remotely from anywhere in the world, provided that you have an Internet connection.
Complete control over your Hybrid Inverter. Using our data logger gives you complete control over your hybrid inverter. You will gain access to features that cannot be accessed via the inverter control panel, such as the update / upgrade feature to update the inverter operating system yourself.
Real-time monitoring. The majority of our app works in real-time including any changes that you make will instantly update on your inverter.
Live stats and monitoring. You have access to multiple stats including live monitoring and reporting. Using this app allows you to see peaks in your energy usage, you can then customize your system to work around this to help you save money on your electricity bills.
Reporting. Generate custom reports and graphs to help you monitor and understand how your system is working and where you are saving money.
Real-time monitoring. The majority of our app works in real-time including any changes that you make will instantly update on your inverter.
Sunsynk is integrated with Octopus Agile, Flux & Go. Our data logger platform has been integrated with Octopus Agile. Having access to these rates, you can setup and monitor your charge and discharge figures, this enables you to charge your battery at the cheapest rates. When the price increases your battery discharges and saves you money.
